    Industrial Lcd Screen Touch Display 19 Inch With OSD Menu On Front Bezel

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD19PMTx01
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    Industrial Lcd Screen Touch Display 19 Inch With OSD Menu On Front Bezel

    industrial lcd screen touch display 19 inch with OSD menu on front bezel

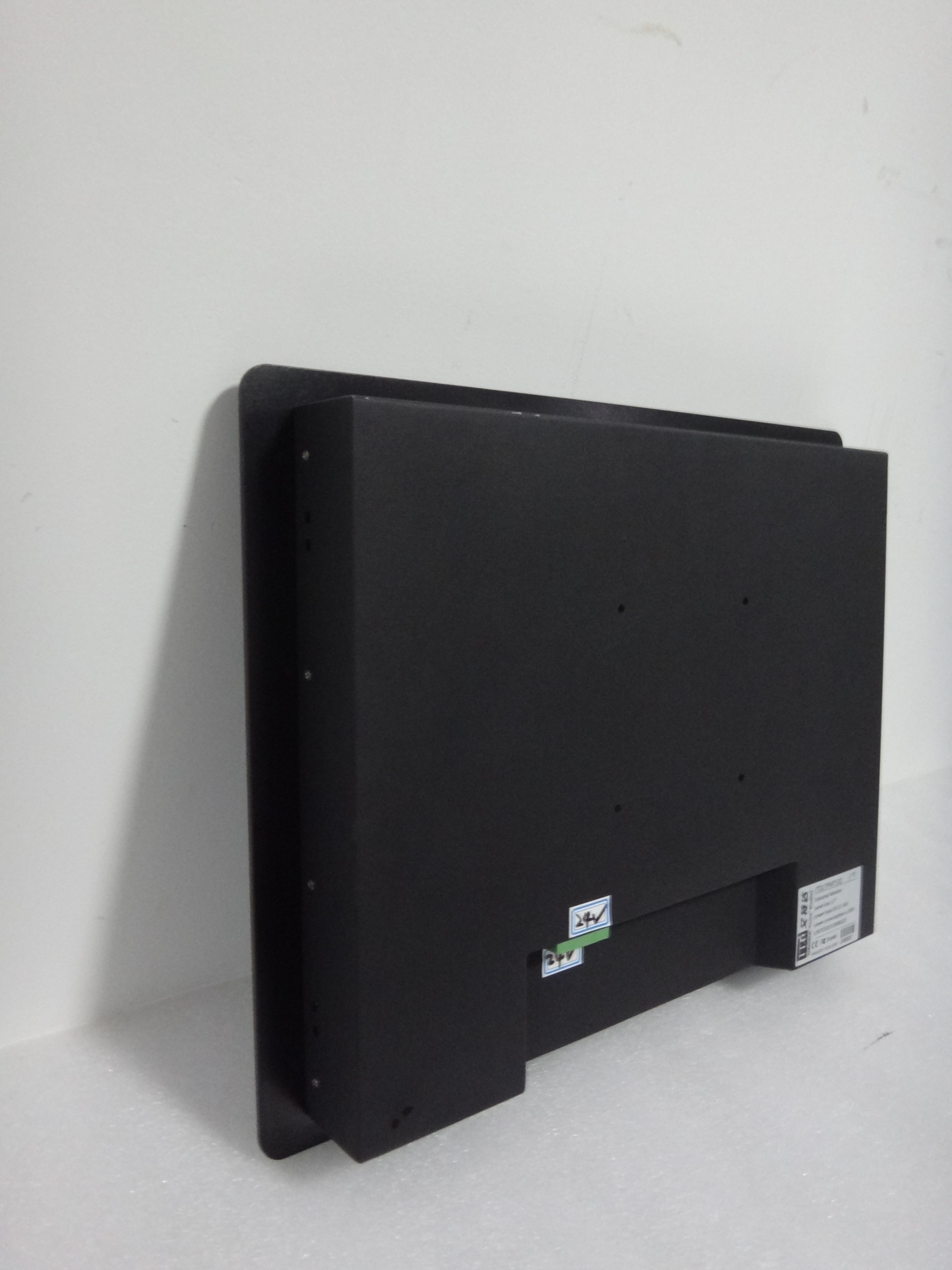

    ITD 19” industrial lcd screen panel-mount LCD monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in a rugged industrial enclosure with brushed aluminum front bezel, which will assure reliable operation in most factory environments rugged in design and fit perfectly into any rack enclosure. It is space saving for your compact environment rack.


    FEATURES of industrial lcd screen

    •High contrast color TFT LCD display supports resolution up to 1280 x 1024

    •Supports DDC 1/2B for Plug & Play compatibility

    •Advanced OSD control for picture quality adjustment

    •Robust design with aluminum NEMA 4/ IP65 front panel

    •All steel construction designed for harsh and industrial environments

    •CE, FCC, RoHS Compliance


    APPLICATIONS of industrial lcd screen

    •Kiosks

    •Industrial Automation/Factory Automation/Building Automation/Banking Automation

    •Robots

    •Delivery Cabinets

    •IoT


    BASIC PARAMETERS of industrial lcd screen

    LCD PanelModel NameITD19PMT***
    Display Size19”
    Panel Typea-Si TFT active matrix
    Pixel Format1280 x 1024
    Active Area376.32(H) x 301.06(V)
    Pixel Pitch2.294(H) x 2.294(H)mm
    Colors262K/16.7M
    Brightness250 (cd/㎡) (Typ.)
    Contrast1000:1 (Typ.)
    Response Time8ms(TYP.)
    Viewing Angles170(H)/160(V)
    YPbPr(option)

    480i,480p,576i,576p

    720p,1080i,1080p

    PC-RGB

    VGA:640x480/720x400

    SVGA:800x600

    XGA:1024x768 SXGA:1280x1024/1400x1050

    UXGA:1680x1200/1680x1050 WXGA:1366x768

    WUXGA:1920x1080/1920x1200

    DVIDVI-I
    HDMI(A type)

    480i,480p,576i,576p

    720p,1080i,1080p

    Audio Input SignalsPC AudioEarphone Input 0.2~2.0VRMS
    Audio Output SignalsFrequency Response100Hz~15KHz @±3dB (1KHz, 0dB reference signal)
    Max Output Power

    2 x W(8Ω) THD+N<10%@1KHz

    (Power Supply: 12V, Audio Input: 0.5VRMS)

    Touch ScreenTypesResistive Touch, IR touch, PCAP touch, SAW Touch optional
    ConnectorUSB or RS232
    Operating System SupportWindows XP/7/8/10, Linux, Android, Mac, Raspberry Pi
    TemperatureOperating Temperature-10~+60℃(-20~+70℃ optional)
    Storage Temperature-20~+70℃
    HumidityRelatively Humidity10~90%RH
    Power SupplyPower Supply12V DC In
    Power Consumption<25 W
