    RK3399 Open Frame Panel PC Android 11 With GPS 4G Module Bluetooth

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD13PPCT5FE2
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    RK3399 Open Frame Panel PC Android 11 With GPS 4G Module Bluetooth

    open frame panel pc RK3399 Android 11 with GPS 4G module Bluetooth

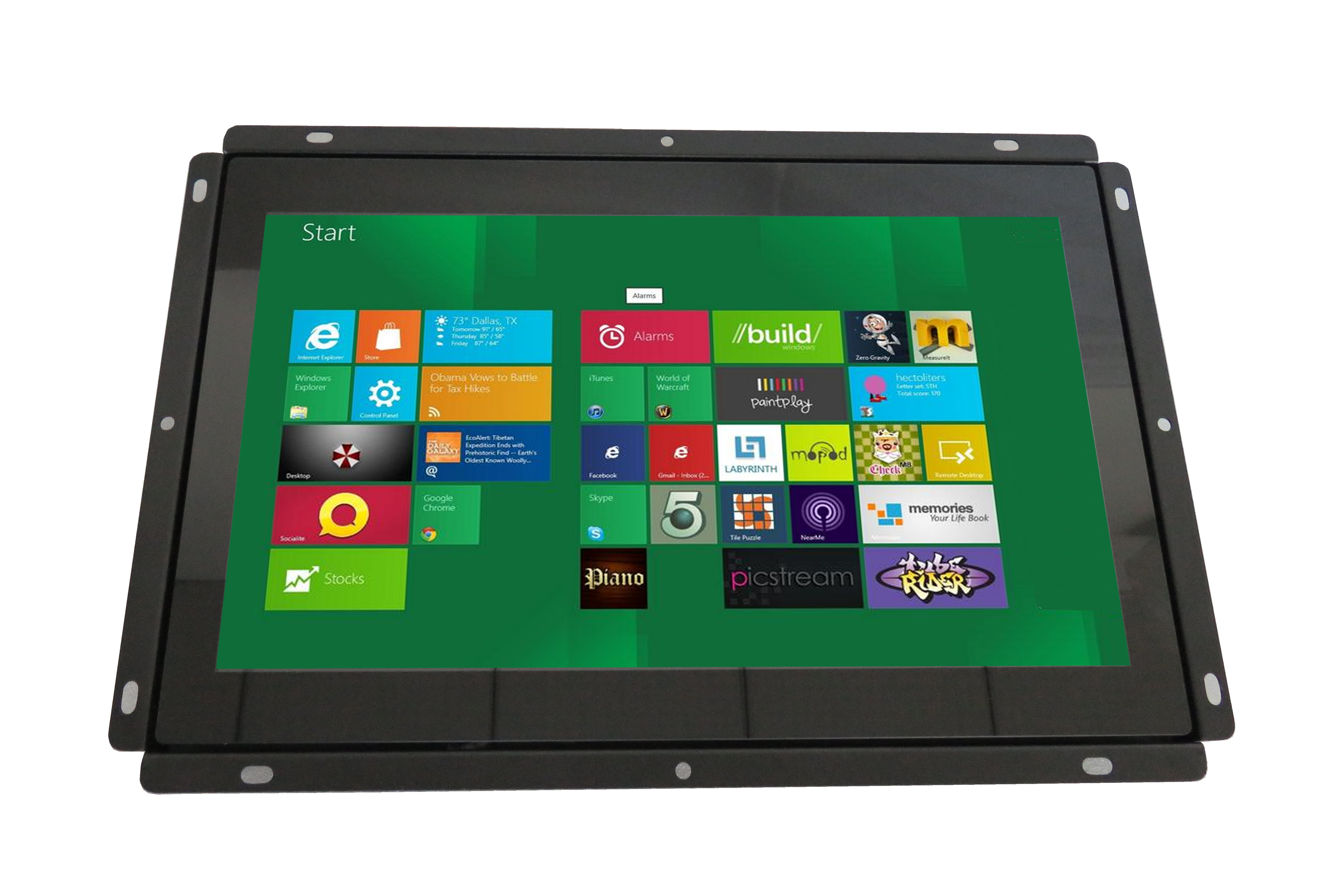

    ITD HMI comfort open frame panel PC is fully-integrated‚ combines high-performance ARM based RK3399 system, and optional touchscreen integrated in industrial-grade LCD flat panels, with sleek and open frame chassis industrial design. This open frame panel PC series with bezel-less display provides design flexibility for customers without any limitation, which can be easily installed in any enclosures.


    FEATURES of open frame panel pc

    •RK3399, 4G RAM, 32G ROM, Android 11

    •Equipped with GPS, 4G Module, Bluetooth, WIFI.

    •Long lasting product cycle for continuity thru allphases of project rollouts and servicing

    •Steel construction for harsh and industrialenvironments

    •Easy to install Open Frame chassis mount display

    •Multiple mounting options: 75 x 75 mm VESA mount and side brackets

    • Provides improved power efficiency and reduced consumption

    • CE, FCC, RoHS Compliance

    OPTIONALS of open frame panel pc

    • DC 24V, DC9-36V, AC100-240V• Optical bonding
    • Resistive touch screen, PCAP touch, IR touch, SAW touch, AR/AG tempered glass• WIFI, 3G, 4G, Bluetooth

    DISPLAY of open frame panel pc

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio13.3”/16:9
    Active Area/ Pixel Pitch293.76(W) x 165.24(H)mm/0.153× 0.153mm
    Native Resolution/ Colors1920 x 1080/16.7M
    Brightness/ Contrast1000cd/㎡/900:1
    Response Time/ Viewing Angle (Typical)30ms/85/85/85/85
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage

    8GB: 16GB/32GB/64GB Optional


    1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    I/O

    1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

    WIFI, Bluetooth, GPS included

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

    Line-Out /MIC IN

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

    Line-Out /MIC IN

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 11Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving25~45W
    Environment ConsiderationsOperating Temperature-10~60℃ (-20~70℃optional)
    Storage Temperature-20~70℃
    Relative Humidity20%~80%
