    12.1 Inch Industrial HMI Touch Panel PC Capacitive Resistive Touchscreen All In One

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD12PPCTxB-J1900/ITD12PPCTxB-I5-4200U/ITD10PPCTxB-I7-4500U
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 7-12 work days
    Price : TBA
    • Product Details
    • Company Profile

    12.1 Inch Industrial HMI Touch Panel PC Capacitive Resistive Touchscreen All In One

    12.1 inch Industrial HMI Touch Panel PC capacitive resistive touchscreen all in one


    BENEFITES of 12.1" industrial HMI

    - Exceptional quality and highly engineered industrial panel computer

    - High Performance Processor, Graphics, Memory and Power

    - Edge to edge design with true flat surface, easy to clean

    - Excellent heat dissipation with aluminum heatsink, fan-less design

    - All robust aluminum construction designed for harsh and industrial environments

    - Easy-to-install embedded/panel mounting with clamps

    - Robust design with NEMA 4/ IP65 front panel

    - Flexible, reliable, and ruggedized for open platform HMI/SCADA

    - Long lasting product cycle for continuity thru all phases of project


    Specs OF HMI touch panel PC:


    Industrial HMI Touch Panel PC
    Model NameITD12PPCT5B-xxxx
    IP RatingIP65 Front Panel

    PC Systems Options
    X86 Windows Based
    CPU: Intel? Celeron J1900 2.0GHz

    Chipset: Intel Bay Trail SoC
    Memory: DDR3L SODIMM SKU, Up to 8GB
    Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
    1 × HDMI, 2×GbE RJ45 Intel? i211
    3 × USB2.0 , 1 × USB3.0 , 1×USB2.0 dongle
    2 × DB-9 COM1&COM2,RS-232/422/485
    2 × 3-wire COM3&COM4 RS-232/485 with terminal block
    2 × 3-wire COM5&COM6 RS-232 with terminal block
    1 × Audio Out, 1×Line Out, 2 x 8Ω 1W Audio AMPout
    1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block
    Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
    Mini-PCIe×1 half size for WIFI/BLT
    X86 Windows Based
    CPU: Intel? 4th 6th/7/8th Gen.Core i3/i5/i7 CPU
    Chipset: Intel SoC
    Memory: DDR3L SODIMM SKU, Up to 8GB
    Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
    1 × HDMI, 2×GbE RJ45 Intel? i211
    3 × USB2.0 , 1× USB3.0 , 1×USB2.0 dongle
    2 × DB-9 COM1&COM2,RS-232/422/485
    2 × 3-wire COM3&COM4 RS-232/485 with terminal block
    2 × 3-wire COM5&COM6 RS-232 with terminal block
    1 × Audio Out, 1×Line Out, 2 × 8Ω 1W Audio AMPout
    1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block
    Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
    Mini-PCIe×1 half size for WIFI/BLT

    LCD Panel
    Screen Diagonal (Inch)12.1”
    Display Active Screen Size (cm)246.0(H)×184.5(V)
    Aspect Ratio4:3
    Physical Resolution800×600 (1024×768 optional)
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m2)350
    Contrast Ratio800:1
    View Angels80/80/70/70
    Backlight/Backlight LifetimeLED Backlight with 50000Hours'LifetimeV

    Touch Panel
    Touch OptionsProjected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
    Touch DriversWindows 7/8/10, Linux, Android, Mac

    Operation
    Operating Temperature Range-20~60°C
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power
    Power IndicatorGreen LED
    Power InputDC 9-36V with 3-pin terminal block
    Power Consumption35W

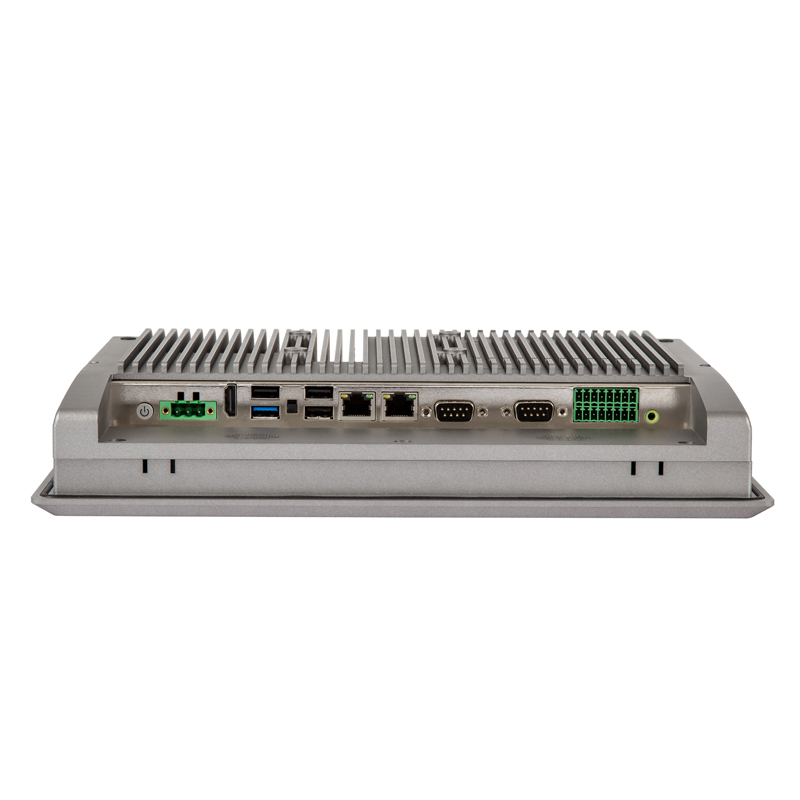

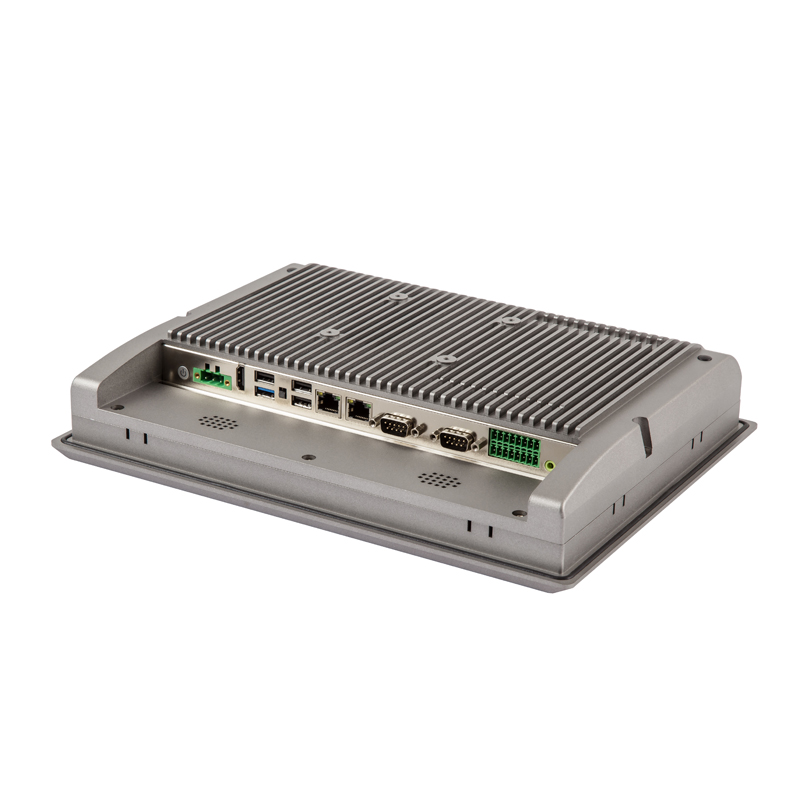

    Produce image:



    HMI panel PC
