15" HMI Panel PC NEMA 4/ IP65 Front X86 Fanless GPIO Industrial Touch Panel Computer

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 15" HMI Panel PC NEMA 4/ IP65 Front X86 Fanless GPIO Industrial Touch Panel Computer from wholesalers

    Buy cheap 15" HMI Panel PC NEMA 4/ IP65 Front X86 Fanless GPIO Industrial Touch Panel Computer from wholesalers
    • Buy cheap 15" HMI Panel PC NEMA 4/ IP65 Front X86 Fanless GPIO Industrial Touch Panel Computer from wholesalers
    • Buy cheap 15" HMI Panel PC NEMA 4/ IP65 Front X86 Fanless GPIO Industrial Touch Panel Computer from wholesalers

    15" HMI Panel PC NEMA 4/ IP65 Front X86 Fanless GPIO Industrial Touch Panel Computer

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCTxB-J1900/ITD10PPCTxB-I3/ITD15PPCTxB-I5/ITD15PPCTxB-I7
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 7-12 work days
    Price : TBA
    • Product Details
    • Company Profile

    15" HMI Panel PC NEMA 4/ IP65 Front X86 Fanless GPIO Industrial Touch Panel Computer

    15" HMI NEMA 4/ IP65 front X86 fanless GPIO industrial touch panel computer


    BENEFITES of 15" HMI

    - Exceptional quality and highly engineered industrial panel computer

    - High Performance Processor, Graphics, Memory and Power

    - Edge to edge design with true flat surface, easy to clean

    - Excellent heat dissipation with aluminum heatsink, fan-less design

    - All robust aluminum construction designed for harsh and industrial environments

    - Easy-to-install embedded/panel mounting with clamps

    - Robust design with NEMA 4/ IP65 front panel

    - Flexible, reliable, and ruggedized for open platform HMI/SCADA

    - Long lasting product cycle for continuity thru all phases of project


    Specs OF HMI touch panel PC:


    Industrial HMI Touch Panel PC
    Model NameITD15PPCT5B-xxxx
    IP RatingIP65 Front Panel

    PC Systems Options
    X86 Windows Based
    CPU: Intel? Celeron J1900 2.0GHz
    Chipset: Intel Bay Trail SoC
    Memory: DDR3L SODIMM SKU, Up to 8GB
    Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
    1 × HDMI, 2×GbE RJ45 Intel? i211
    3 × USB2.0 , 1×USB3.0 , 1×USB2.0 dongle
    2 × DB-9 COM1&COM2,RS-232/422/485
    2 × 3-wire COM3&COM4 RS-232/485 with terminal block
    2 × 3-wire COM5&COM6 RS-232 with terminal block
    1 × Audio Out, 1×Line Out, 2×8Ω 1W Audio AMPout
    1 × A T/ATX switch, 1×14 bit GPIO (Optional), 1×Remote switch with terminal block
    Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
    Mini-PCIe×1 half size for WIFI/BLT
    X86 Windows Based
    CPU: Intel? 4th 6th/7/8th Gen. Core i3/i5/i7 CPU
    Chipset: Intel SoC
    Memory: DDR3L SODIMM SKU, Up to 8GB
    Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
    1 × HDMI, 2×GbE RJ45 Intel? i211
    3 × USB2.0 , 1×USB3.0 , 1×USB2.0 dongle
    2 × DB-9 COM1&COM2,RS-232/422/485
    2 × 3-wire COM3&COM4 RS-232/485 with terminal block
    2 × 3-wire COM5&COM6 RS-232 with terminal block
    1 × Audio Out, 1×Line Out, 2×8Ω 1W Audio AMPout
    1 × A T/ATX switch, 1×14 bit GPIO (Optional), 1×Remote switch with terminal block
    Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
    Mini-PCIe×1 half size for WIFI/BLT

    LCD Panel
    Screen Diagonal (Inch)15”
    Display Active Screen Size (cm)304.128(H)×228.096(V)
    Aspect Ratio4:3
    Physical Resolution1024×768
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m2)250nits
    Contrast Ratio700:1
    View Angels80/80/60/80
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel
    Touch OptionsProjected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
    Touch DriversWindows 7/8/10, Linux, Android, Mac

    Operation
    Operating Temperature Range-20~60°C
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power
    Power IndicatorGreen LED
    Power InputDC 9-36V with 3-pin terminal block
    Power Consumption40W

    Order Information
    15” Industrial HMI PCAP Touch Panel PC with J1900ITD15PPCT5B-J1900
    15” Industrial HMI Resistive Touch Panel PC with J1900ITD15PPCT1B-J1900
    15” Industrial HMI PCAP Touch Panel PC with i5-4200UITD15PPCT5B-i5-4200U
    15” Industrial HMI Resistive Touch Panel PC with i5-4200UITD15PPCT1B- i5-4200U
    15” Industrial HMI PCAP Touch Panel PC with i5-6360UITD15PPCT5B-i5-6360U
    15” Industrial HMI Resistive Touch Panel PC with i5-6360UITD15PPCT1B-i5-6360U
    15” Industrial HMI PCAP Touch Panel PC with i5-7200UITD15PPCT5B-i5-7200U
    15” Industrial HMI Resistive Touch Panel PC with i5-7200UITD15PPCT1B-i5-7200U
    15” Industrial HMI PCAP Touch Panel PC with i5-8250UITD15PPCT5B-i5-8250U
    15” Industrial HMI Resistive Touch Panel PC with i5-8250UITD15PPCT1B-i5-8250U
    15” Industrial HMI PCAP Touch Panel PC with i7-4500UITD15PPCT5B-i7-4500U
    15” Industrial HMI Resistive Touch Panel PC with i7-4500UITD15PPCT1B-i7-4500U
    15” Industrial HMI PCAP Touch Panel PC with i7-6500UITD15PPCT5B-i7-6500U
    15” Industrial HMI Resistive Touch Panel PC with i7-6500UITD15PPCT1B-i7-6500U
    15” Industrial HMI PCAP Touch Panel PC with i7-7500UITD15PPCT5B-i7-7500U
    15” Industrial HMI Resistive Touch Panel PC with i7-7500UITD15PPCT1B-i7-7500U
    15” Industrial HMI PCAP Touch Panel PC with i7-8550UITD15PPCT5B-i7-8550U
    15” Industrial HMI Resistive Touch Panel PC with i7-8550UITD15PPCT1B-i7-8550U

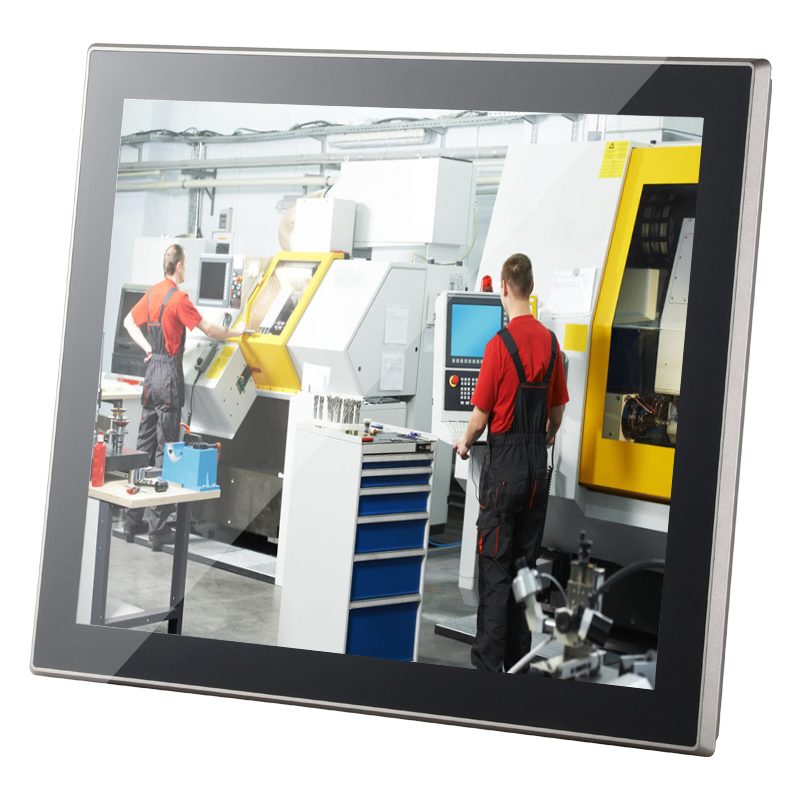

    Produce image:


    15 panel PC


    15 inch HMI

    industrial panel computer






    Applications:


    Quality 15" HMI Panel PC NEMA 4/ IP65 Front X86 Fanless GPIO Industrial Touch Panel Computer for sale
