    Fanless Industrial Mini PC OPS Slot In Intel Core 7300u Kabylake TPM 2.0

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD-MNPC-7300U-OPS-P42N
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 units per month
    Price : TBA
    • Product Details
    • Company Profile

    Fanless Industrial Mini PC OPS Slot In Intel Core 7300u Kabylake TPM 2.0

    industrial mini pc fanless OPS slot-in 7300u Kabylake TPM 2.0


    Features of industrial mini pc fanless:


    The OPS Slot-in industrial mini PCs support a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th and 7th generation Intel processors (Skylake & Kabylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232.


    Specifications of OPS :


    Specification

    Optional OPS CasingsP30N, P33N, P42N

    Casing Dimensions

    ITD-MNPC-xxxxU-OPS-P30N: 180*195*30mm.
    ITD-MNPC-xxxxU-OPS-P33N: 180*195*33mm.
    ITD-MNPC-xxxxU-OPS-P42N: 180*195*42mm.

    Optional Processor

    TDP: 15W, low power consumption, energy conservation;

    Support Intel 6th&7th generation FCBGA1356 Celeron, Core i3 i5 i7 CPU;

    6th generation: 3855U,3955U, i3-6006U/6100U, i5-6200U/6300U, i7-6500U/6600U

    7th generation: 3865U,3965U, i3-7020U/7100U/7130U, i5-7200U/7300U, i7-7500U/7600U

    ChipsetIntegrated Single Chip in CPU
    Memory1*Laptop DDR4 2133/2400MHz low voltage 1.2V Memory channel, max.16GB RAM
    GraphicsIntegrated Intel HD Graphics 510/520/610/620 in CPU
    Heat DissipationThin, cool, silent fan
    Power Supply

    Support DC 12V /19V; DC port: 5.5*2.5mm

    Recommended 12V 5A/7A/10A or 19V 3A (or above).

    Ethernet

    1*Realtek 8111H Gigabit Ethernet RJ45 LAN port; Optional dual LAN ports.

    Support wake-on-LAN and PXE diskless boot function.


    Display

    Support single display, dual display copy & expansion, single display under DOS;

    Support H.264,3D,2K,1080P, FHD,4K, UHD display;

    1*VGA interface supports Max resolution 1920*1200@60Hz;

    1*HDMI 1.4 interface supports Max resolution 4096*2304@24/30Hz.


    External I/O ports

    1*DC-in, 1*VGA, 1*HDMI, 2*USB3.0, 1*LAN, 2*USB2.0, 1*SPK, 1*Mic-in, 1*80pin OPS slot,

    1*one-key recovery system button,1*CMOS button,1*Reset button, etc.

    Optional 1*RS232 COM (P42N casing).

    Built-in Pins

    VGA, HDMI, 4PIN ATX, 4*USB2.0, F_PANEL, AUTO_SW, optional RS232 COM, CLR_CMOS, GPIO,

    2*FAN, etc.

    SoundIntegrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller.

    Hard Disk

    1*2.5inch SATA slot for SSD or HDD;

    1*SATA3.0 port for 2.5inch SSD or HDD;

    1*MSATA3.0 slot (SATA, USB signals) for Mini SATA(MSATA) SSD;

    If you need NVME(PCIE) signal in MSATA slot, please tell us to change in advance.

    Power Switch1*Power button
    Battery3V CR2032 button Battery
    WIFI

    2*WIFI holes for antenna masts.

    1*Mini PCIE slot (PCIE, USB signals) supports WIFI,3G/4G/Bluetooth/GPS module.

    COM (Serial port)

    P30N P33N casings have no COM port but have 1*RS232 COM pin.

    P42N casing has 1*RS232 COM port, but has no COM pin.

    Operating Environment

    Operating Temperature: - 20℃~60℃

    Working Humidity: 5%~95% Relative humidity, no condensation

    BIOSAMI BIOS; Support power on, timing switch, remote switch, intelligently identify devices
    Watch DogWatch Dog programming supports hardware reset function (256 levels, 0~255 seconds)
    Power On

    By default, the PC does not support “Power On and Boot”, if you need, please tell us to set in advance.

    The AUTO_SW pin, BIOS support the power on and boot settings.

    Operating SystemSupports Windows 10, Windows 8, Windows 7, Linux Ubuntu
    CertificatesCE, FCC, RoHS
    Casing ColorBlack
    Casing MaterialMetal
    LOGOITD/OEM
    Installation MethodWall hanging, desktop
    Net Weight2.0KG/set
    AccessoriesPower supply, optional OPS expansion card
    Warranty2 Years

    Hard Disk Description
    Intel CPUSATA3.0 port (SATA1)2.5inch SATA slot (SATA2)mSATA slot
    When the PC uses Celeron CPUNot supportSupportSupport
    When the PC uses Core CPUSupportSupportSupport

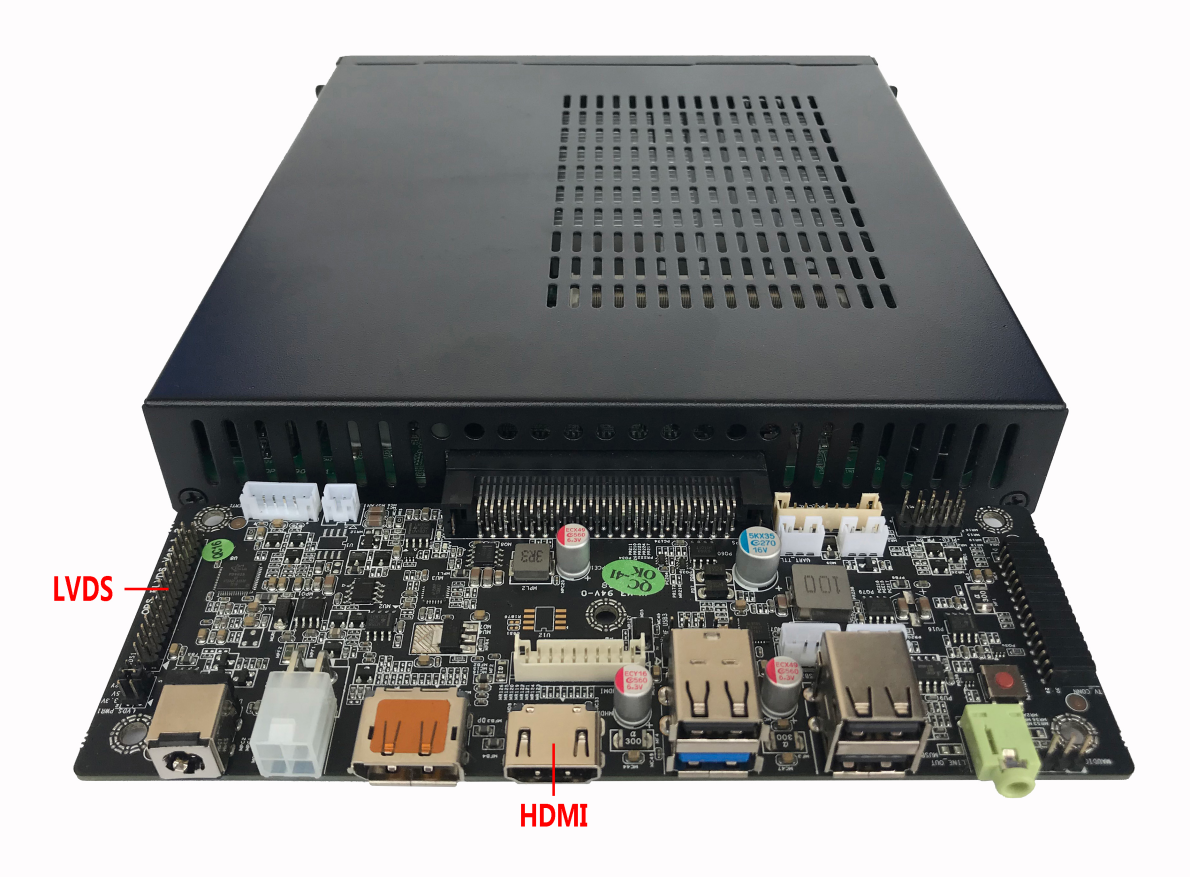

    Displays of OPS:
