    Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD-MNPC-J4125-2L2C
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 units per month
    Price : TBA
    • Product Details
    • Company Profile

    Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125

    Compact industrial box PC fanless computer Windows 11 Intel J4125


    Features of Industrial box PC:


    • Onboard Intel Celeron J1900/J1800/J4105/J4125 CPU
    • DDR3/DDR4 SODIMM×1 ,Up to 8GB Memory DDR3/4 SODIMM×1,Up to 8GB Memory
    • VGA+HDMI
    • 1 x SATA ( 2.5”HDD ) ,1 x mSATA
    • Windows 11 Supported
    • Fanless
    • Operation Temperature: -20℃~70℃ O

    Specifications of Industrial box PC:


    SystemITD-MNPC-Jxxxx-2L2C
    Model
    ProcessorOnboard Intel Celeron J1 900/J1800/J4105/J4125 CPU
    System MemoryDDR3/4 SODIMM×1,Up to 8GB Memory
    DisplayHDMI, VGA
    Ethernet2 x GbE RJ45 Realtek 8111H
    I/O Port

    3 x USB2.0, 1 x USB3.0

    2 x DB-9 COM1&COM2, RS-232

    1 x Audio Line-out, 1 x Audio Mic-in

    1 x Power Button 1 x Power LED

    1 x HDD LED

    1 x Power input

    1 x Antenna interface for WIFI

    Storage Disk Driver

    1x MSATA

    1x HDD/SSD M.2(only J4125)

    Expansion SlotMini-PCIe x1 half size for WIFI/BLT
    Watchdog timer1~255 Levels
    Mechanical
    ConstructionAluminum
    MountingVESA/Panel Mounting
    Dimension135 x 127x38.7 mm
    Net WeightTBA
    Environmental
    Operating Temperature-20°C ~ 70°C
    Storage Temperature-30°C ~ 70°C
    Storage Humidity95% @40°C, non-condensing
    Adapter
    DC inputDC 12V
    OS SupportWindows® 7 /8/10, WES 7,LINUX


    Ordering Information

    ITD-MNPC-J1900-2L2C: BOX PC | J1900 CPU | DDR3L SO-DIMM | 1xUSB3.0,3x USB2.0 | 2x LAN | 2 x COM | VGA+HDMI | Line out,
    Mic-in | 1xPower Adapter
    ITD-MNPC-J1800-2L2C: BOX PC | J1800 CPU | DDR3L SO-DIMM | 1xUSB3.0,3x USB2.0 | 2x LAN | 2 x COM | VGA+HDMI | Line out
    Mic-in | 1xPower Adapter
    ITD-MNPC-J4105-2L2C: BOX PC | J4105 CPU | DDR4 SO-DIMM | 1xUSB3.0,3x USB2.0 | 2x LAN | 2 x COM | VGA+HDMI | Line out
    Mic-in | 1xPower Adapter
    ITD-MNPC-J4125-2L2: BOX PC | J4125 CPU | DDR4 SO-DIMM | 3xUSB3.0,1x USB2.0 | 2x LAN | 2 x COM | VGA+HDMI | Line out
    Mic-in | 1xPower Adapter
    Packing list
    2.5”HDD brackets
    Power Adapter

    Optional Accessories

    WIFI module

    SSD

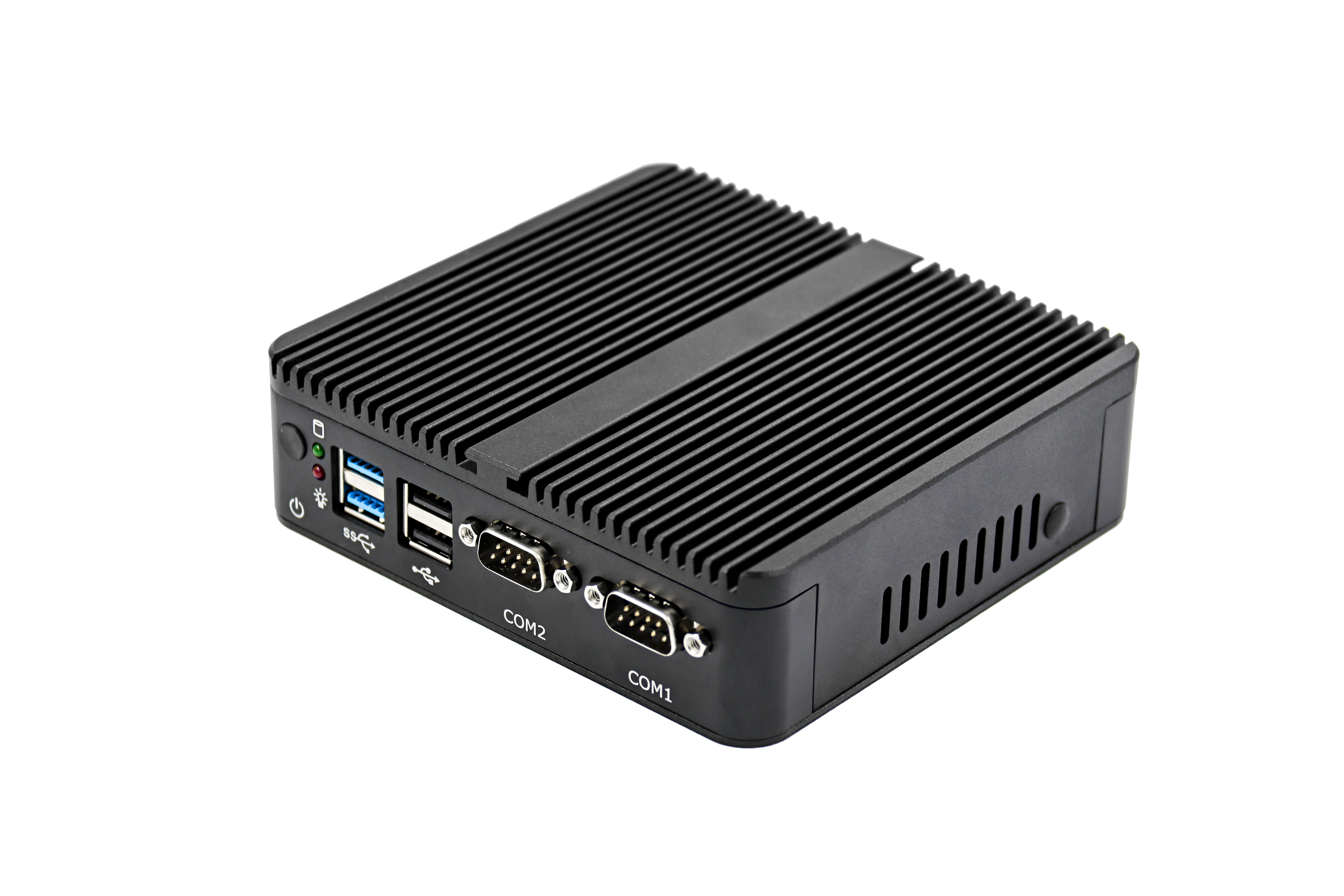

    Displays of industrial box PC:
