    IP65 Front Panel Industrial Touch Screen Monitor 19'' Flush Mount Pcap 100-240 VAC

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD19OFT5Y1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-7 Business Days
    • Product Details
    • Company Profile

    IP65 Front Panel Industrial Touch Screen Monitor 19'' Flush Mount Pcap 100-240 VAC

    19 inch flush mount pcap touch monitor true flat panel industrial monitor IP65 front panel


    SPECIFICATIONS of flush mount monitor


    ModelITD19OFT5Y1
    IPIP65(for front panel only)
    Outline DimensionsWidth: 428.12mm Height: 356.86mm Depth: 49.7mm
    Weight(N.W/G.W)5.5KG
    Packing Dimension525.0×190.0×455.0mm
    LCD Type19"Active matrix TFT-LCD
    Video InputVGA/HDMI
    Recommend Resolution1280×1024@60Hz,75Hz
    OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: External Brick
    Input (line) Voltage: 100-240 VAC, 50-60 Hz
    Output Voltage/Current: 12V at 4A Max.
    Power Consumption20W
    Mount Interface

    1)VESA 75mm and 100mm

    2)Rear Mounting Brackets

    Regular Warranty1 Year for TFT Panel, 2 Years for others
    Agency ApprovalFCC,CE,RoHS Certified

    Active Area(mm)376.32(H)×301.06(V)
    Resolution1280×1024
    Pixel Pitch(mm)0.297×0.297
    Nominal Input Voltage VDD+5V(Typ.)
    Viewing angle (L/R/T/B)85°/85°/80°/80°
    Contrast1000:1
    Luminance(cd/m2)250
    Response Time(Rising/Falling)5.7/2.3ms
    Support Color16.7M
    Screen Scanning60Hz
    Backlight MTBF(hr)50000h

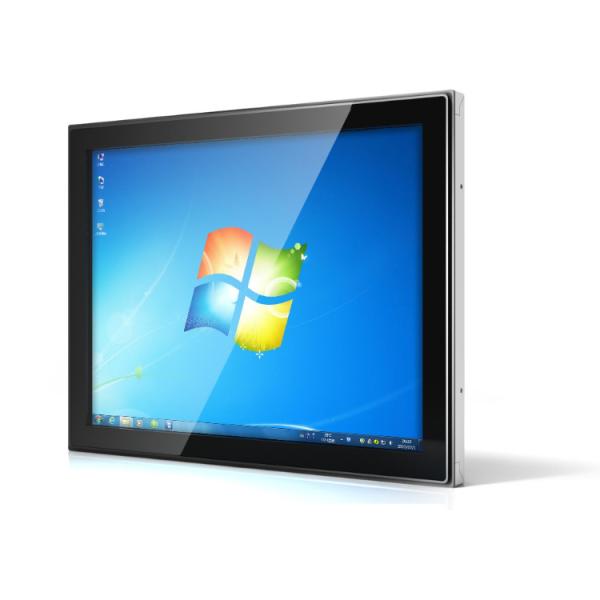

    Product image of IP65 front industrial monitor:


    flush mount industrial monitor
