    IP65 Front Industrial Touch Panel PC Fully Integrated Marine Display 11.6” Size

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD11PPCT5XI5A
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 15-20 work days
    Price : TBA
    • Product Details
    • Company Profile

    IP65 Front Industrial Touch Panel PC Fully Integrated Marine Display 11.6” Size

    IP65 front industrial multi-touch screen panel mounted panel PC fully-integrated marine display


    Specs:


    PanelCell Type/Glass SurfaceTFT LCD
    Size11.6”
    Aspect Ratio16:9
    Active Area256.125(H) x 144(V)mm
    Pixel Pitch0.1875 x 0.1875mm
    Native Resolution1366 x 768
    Colors262K
    Brightness400cd/㎡
    Contrast800:1
    Response Time25ms
    Viewing Angle(Typical)85/85/85/85
    Light SourceLED Backlight with 50000Hours’Lifetime

    SPECIFICATION

    SystemCPUIntel® Core Quad Core i5-7200U 2.5GHz Fanless
    BIOSAMI
    ChipsetIntel H110
    Memory2 x SO-DIMM, DDR4 2133/2400MHz Memory, 8GB, Max.32GB
    Graphic ChipsetIntel HD Graphics 620
    Storage2 x SATA3.0 1 x mSATA (SATA SSD)
    LAN2 x 10/100/1000Mbps Ethernet
    Input / OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA
    HDMI Port1x HDMI Port
    Audio Card

    with Realtek ALC662

    Line-Out /MIC IN

    PowerInput VoltageDC 9-36V
    Operation/Power Saving30W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90% (Non Condensing)
    Anti-Vibration5Hz-500Hz / 1Grms/3 Axis
    Anti-Shock15G, 15ms Duration

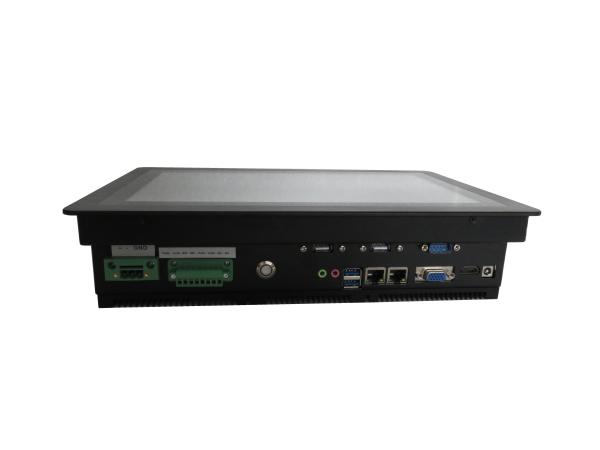

    Image:


    Marine panel PC


    11.6 inch pcap touch panel PC for marine

    IP65 front panel mount pc


    FEATURES


    ▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS

    ▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity

    ▪ Energy-efficient and fan-less HMI Systems

    ▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel

    ▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support
