Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch from wholesalers

    Buy cheap Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch from wholesalers
    • Buy cheap Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch from wholesalers
    • Buy cheap Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch from wholesalers

    Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD10MT5HBIPS1-ITD43MT5HBIPS1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000PCS/Month
    Delivery Time : 20 Business Days
    • Product Details
    • Company Profile

    Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch

    full waterproof IP65 IP66 IP67 rugged industrial panel PC with Stainless Steel aluminum alloy enclosure pcap touch

    The ITD Full IP65/IP66 panel PCs series is an Intel® Celeron™ Quad Core Processor J1900 2.0 GHz based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, and biotechnology process manufacturing. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.

    ModelITD10PPCG1IPSJ1ITD12PPCG1IPSJ1ITD15PPCG1IPSJ1ITD17PPCG1IPSJ1ITD19PPCG1IPSJ1ITD21PPCG1IPSJ1
    Size10.4” (4:3)12.1”(4:3)15” (4:3)17” (4:3)19” (4:3)21.5” (16:9)
    Active Area211.2(W) x 158.4(H)246.0(H) x 184.5(V)211.2(W) x 158.4(H)337.92(H) x 270.33(V)376.32(H) x 301.06(V)476.64(H)x248.25(V)
    Contrast Ratio500:1500:1700:11000:11000:11000:1
    Resolution800x600 or 1024x768800x600 or 1024x7681024x 7681280 x 10241280 x 10241920 x 1080
    Brightness300nits300nits300nits250nits250nits250nits
    Viewing Angles70/70/60/7070/70/60/6080/80/60/8085/85/80/8085/85/80/8085/85/80/80
    BacklightLEDLEDLEDLEDLEDLED


    SPECIFICATION

    SystemCPUIntel® Baytrail Celeron Quad Core J1900 2.0GHz Processor
    BIOSAMI
    ChipsetIntel® Baytrail SOC CPU Integrated
    Memory1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage1 x SATA, 1 x mSATA, Default to 64GB SSD
    I/OSerial Ports1x COM (Optional)
    USB Ports2 x USB 2.0(Waterproof Connector and Cable)
    Power Port1 x 12V DC Jack (Waterproof Connector and Cable); DC9-36V input optional
    LAN1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable)
    WIFIBuilt-in, 802.11a/b/g/h (optional)
    Touch ScreenTypeProjected Capacitive Touch Screen with 10 independent touch points
    Response Time≤5ms
    InterfaceUSB or COM, default to USB
    Transparency≥85%
    Lifetime≥50,000,000 times/click
    OS SupportWindows CE/XP/7/8/10, Linux, Mac, Android
    GeneralPower InputDC 12V, DC 9-36, AC100-240V input optional
    Power SwitchIncluded
    Mounting Option

    75 x 75/100 x 100mm VESA Mount
    Panel Mounting optional

    Operation/Power SavingTBA
    Operating Temperature-10~60℃(-20~70℃ optional)
    Storage Temperature-20~70℃
    OS SupportWindows 7/Windows 10/ Linux
    Order InformationStainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ1
    Stainless Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ1
    Stainless Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ1
    Stainless Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ2
    Stainless Steel Full IP67 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ2
    Stainless Steel Full IP67 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ2
    Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPAJ1
    Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPAJ1
    Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPAJ1
    Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPXJ1
    Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPXJ1
    Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPXJ1

    BENEFITES

    • Exceptional quality and highly engineered industrial heavy duty monitors
    • Optional touchscreens like resistive and PCAP
    • Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
    • Solid steel and stainless steel or aluminum alloy enclosures
    • IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
    • Accuracy in high-use applications
    • Long lasting product cycle for continuity thru all phases of project


    Product Display

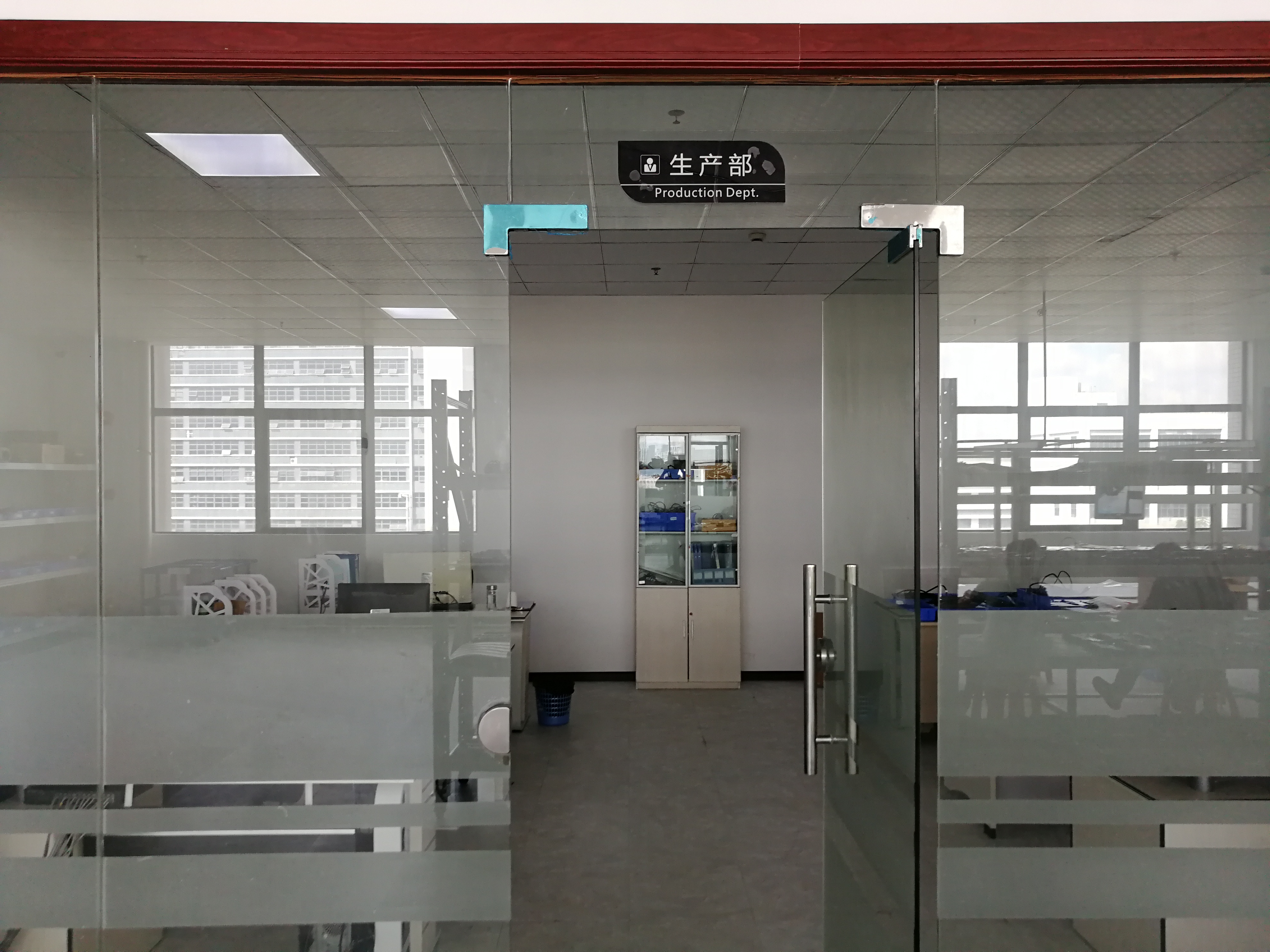

    Our factory



    Quality Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch for sale
