    Multi Interactive Touch Panel PC Panel Mounted All In One Aspect Ratio 16/9

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD**PPCT5X**-NFC/RFID
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 12-15 work days
    Price : TBA
    • Product Details
    • Company Profile

    Multi Interactive Touch Panel PC Panel Mounted All In One Aspect Ratio 16/9

    NFC RFID printer barcode scanner for multi interactive touch screen kiosk panel mounted All in one PC


    FEATURES


    ▪ Easy-to-clean, true flat front surface without bezel

    ▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

    ▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

    ▪ Eliminates dust and debris build-up at the edge and corners of the display

    ▪ Provides improved power efficiency and reduced consumption

    ▪ Responds to a light touch to activate response

    ▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

    ▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

    ▪ CE, FCC, RoHS Compliance


    OPTIONALS

    •DC 24V, DC9-36V, AC100-240V

    •High brightness, sunlight readable

    •Resistive touch screen, tempered glass

    •Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc


    Specs:


    SPECIFICATION

    PanelCell Type/Glass SurfaceTFT
    Size15.6”
    Aspect Ratio16:9
    Active Area344.23(H)x 193.53(V) (H)mm
    Pixel Pitch0.252 × 0.252mm
    Native Resolution1366 x 768 (1920 x 1080 optional)
    Colors16.2M
    Brightness300cd/㎡
    Contrast500:1
    Response Time6ms
    Viewing Angle(Typical)170/160
    Light SourceLED Backlight with 50000Hours’Lifetime

    SPECIFICATION

    SystemCPUIntel® Celeron J1900 2.0GHz Processor
    BIOSAMI
    ChipsetTBA
    Memory1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage64GB SSD
    LAN1 x 10/100/1000Mbps Ethernet
    Input / OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA
    HDMI Port1x HDMI Port
    Audio Card

    with Realtek ALC662

    Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN

    PowerInput VoltageDC 12V
    Operation/Power Saving30W
    Environment ConsiderationsOperating Temperature-10~60℃ (-20~70℃ Optional)
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information15.6”Flat Bezel Panel PC with PCAP Touch J1900/ITD156PPCT5XJ1
    15.6”Flat Bezel Panel PC with Resistive Touch J1900/ITD156PPCT1XJ1
    15.6” Flat Bezel Panel PC with Tempered GlassJ1900/ITD156PPCG1XJ1

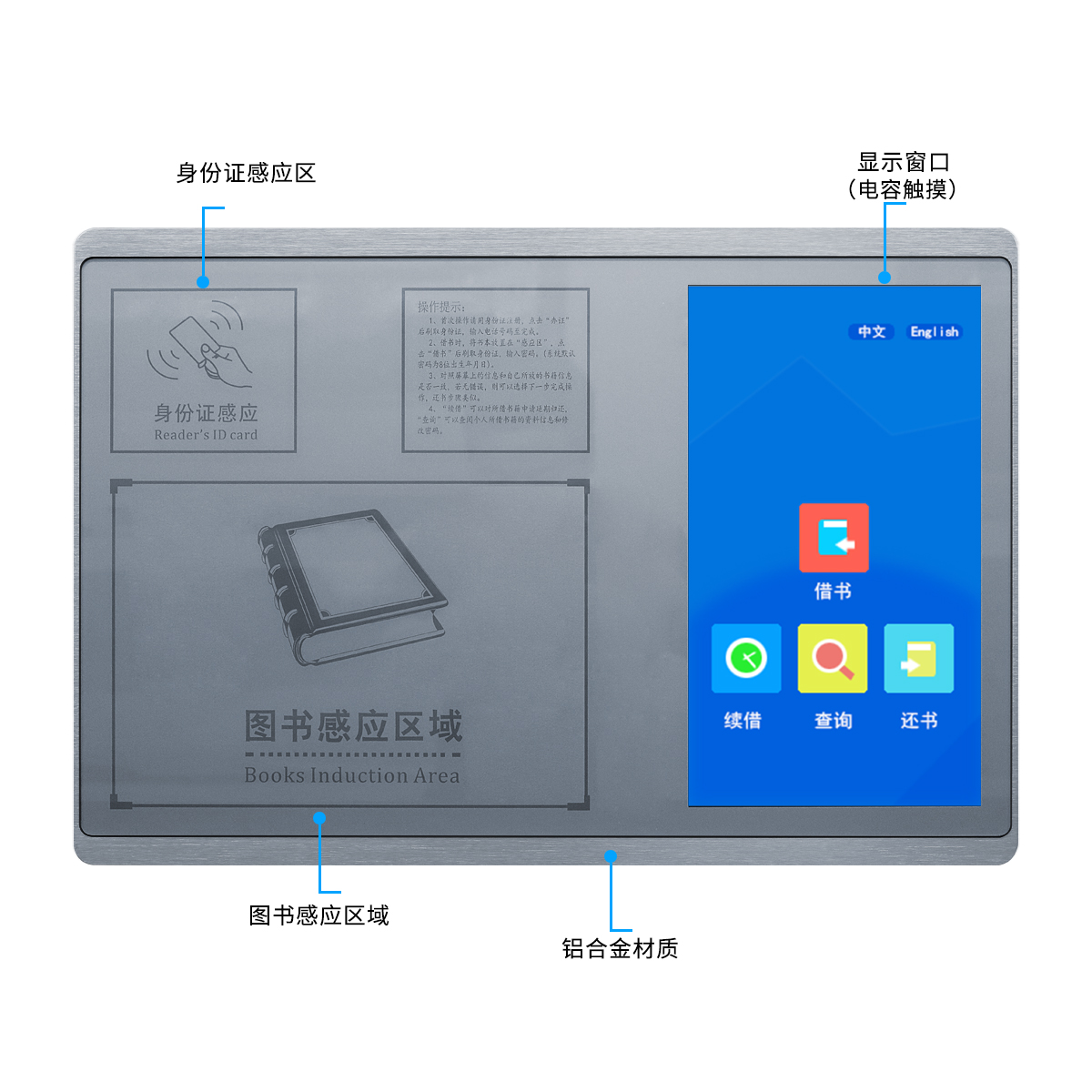

    Image:
