    15" Pure Flat Stainless Steel Industrial Touch Screen PC Resistive Capacitive HMI Linux

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCT5KXE31
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 7-12 work days
    Price : TBA
    • Product Details
    • Company Profile

    15" Pure Flat Stainless Steel Industrial Touch Screen PC Resistive Capacitive HMI Linux

    Industrial panel PC 15”Flat Bezel Android all in one multi-touch screen HMI


    Specs:


    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio15”/4:3
    Active Area/ Pixel Pitch304.12(H)x 228.09(V)mm /0.297 × 0.297mm
    Native Resolution/ Colors1024 x 768/ /16.2M
    Brightness/ Contrast250cd/㎡/700:1
    Response Time30ms
    Viewing Angle(Typical)80/80/60/80
    Light SourceLED Backlight with 50000Hours’Lifetime

    SPECIFICATION

    System

    CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

    GPU: Mali-T764 GPU

    SDRAM: 2G; 4G Optional

    Flash: 8G: 16G/32G/64G/128G Optional

    OS: Android 5.1/6.0; Bluetooth: Optional

    Video Decoder: 4K VP8 and 4K 10bits H265/H264

    1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

    Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

    Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

    /H264/VP8/MVC

    Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

    Input / Output

    1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

    1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

    1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

    Operating Temperature-10~60℃ (-20~70℃ Optional)
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information15”Flat Bezel Android Panel PC with PCAP Touch/ITD15PPCT5KXE31
    15”Flat Bezel Android Panel PC with Resistive Touch/ITD15PPCT1KXE31
    15”Flat Bezel Android Panel PC with Tempered Glass/ITD15PPCG1XE31

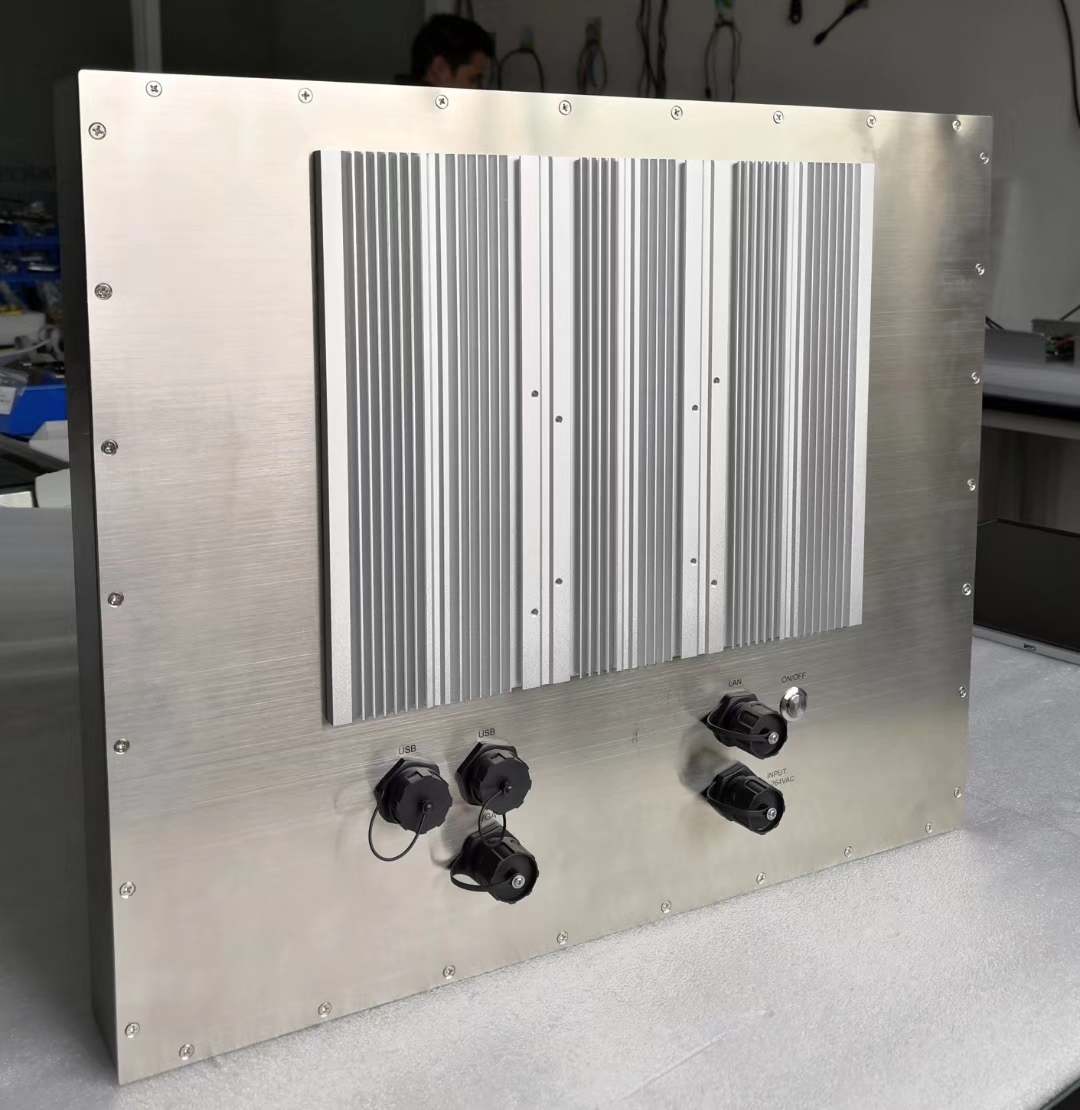

    Image:


    stainless steel panel PC


    rugged stainless panel PC


    touch panel PC


    FEATURES


    • Centralized server controls content distribution;

    • Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

    • Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

    • Simple content scheduling and updating for each display;

    • Restart and update digital signage players remotely;

    • Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

    • Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

    • Transfer schedules and contents to one or more displays;

    • Control, monitor and design screen layouts remotely by the admin software;

    • Support Multi-zone terminal display and flexible screen layout;

    • Local review of multi-zone display layout once the content is stored in the server PC;
