    HMI Comfort Touch Panel PC 15.6" Screen Diagonal 1920x1080 Physical Resolution

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD156PPCT5**
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 15-20 working days
    Price : TBA
    • Product Details
    • Company Profile

    HMI Comfort Touch Panel PC 15.6" Screen Diagonal 1920x1080 Physical Resolution


    15.6" muli-touch screen HMI comfort touch panel PC built-in RIFD,NFC,Fingerprint,QR rearder,web camera,GPS


    ITD 15.6” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 15.6” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.

    Specifications

    PanelCell Type/Glass SurfaceTFT
    Size15.6”
    Aspect Ratio16:9
    Active Area344.16(W) × 193.59(H)mm
    Pixel Pitch0.17925 × 0.17925mm
    Native Resolution1920 x 1080
    Colors16.7M
    Brightness300cd/㎡
    Contrast500:1
    Response Time14ms
    Viewing Angle(Typical)160/160
    Light SourceLED Backlight with 50000Hours’Lifetime

    SPECIFICATION

    SystemCPUIntel® Core i3/i5/i7 Processor
    BIOSAward BIOS 4/8Mbit SPI Flash ROM
    ChipsetIntel Valley View SSA‐Cunit
    Memory1 x SO-DIMM, DDR3 1333MHz Memory, 4GB, Max.16GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage64G SSD
    LAN1 x 10/100/1000Mbps Ethernet
    Input / OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA
    HDMI Port1x HDMI Output
    Audio Card

    with Realtek ALC662

    Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN

    PowerInput VoltageDC 12V
    Operation/Power Saving58W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%(Non Condensing)
    OS SupportWindows 7/ Windows XP/ Windows 8/ Windows 10/Linux
    Order Information15.6” PCAP Touch Panel PC i3/i5/i7, NFC Reader /ITD156PPCT5KI*-NFC
    15.6” Non Touch Panel PC i3/i5/i7, NFC Reader /ITD156PPCG1KI*-NFC
    15.6” PCAP Touch Panel PC i3/i5/7, RFID Reader /ITD156PPCT5KI*-RFID
    15.6” Non Touch Panel PC i3/i5/i7, RFID Reader /ITD156PPCG1KI*-RFID

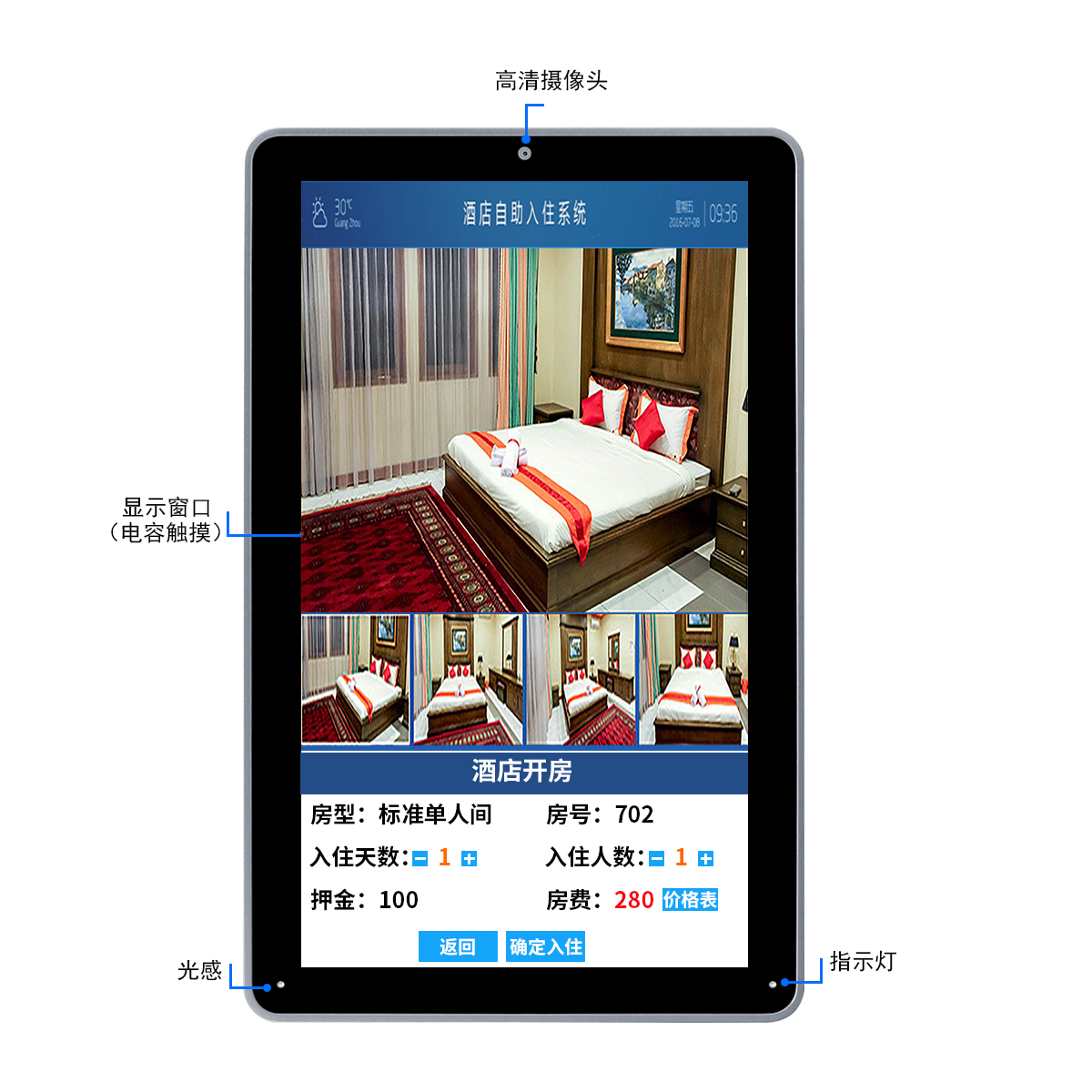

    Product Display


    touch panel PC RFID NFC QR reader



    touch panel PC QR reader GPS
