    Industrial HMI 10 Inch PoE Panel Mount Touch Screen Pc

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD101PPCT5XJ1-RFID-QR
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000 unit per month
    Delivery Time : 12-15 work days
    Price : TBA
    • Product Details
    • Company Profile

    Industrial HMI 10 Inch PoE Panel Mount Touch Screen Pc

    10 inch flat surface PC panel touch screen PoE industrial HMI with RFID 13.56MHz AR reader


    FEATURES

    ▪ Easy-to-clean, true flat front surface without bezel

    ▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

    ▪ Web camera, RFID and thermal printer integrated

    ▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

    ▪ Eliminates dust and debris build-up at the edge and corners of the display

    ▪ Provides improved power efficiency and reduced consumption

    ▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

    ▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

    ▪ CE, FCC, RoHS Compliance


    OPTIONALS

    •DC 24V, DC9-36V, AC100-240V

    •High brightness, sunlight readable

    •Resistive touch screen, tempered glass

    •Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc


    Specs:


    PanelCell Type/Glass SurfaceTFT
    Size10.1”
    Aspect Ratio16:10
    Active Area216.96(H) x 135.6(V)mm
    Pixel Pitch0.1695× 0.1695mm
    Native Resolution1280 x 800
    Colors16.7M
    Brightness350cd/㎡
    Contrast800:1
    Response Time16ms
    Viewing Angle(Typical)85/85/85/85
    Light SourceLED Backlight with 50000Hours’Lifetime

    SPECIFICATION

    SystemCPUIntel® Celeron J3160 1.6GHz Processor
    BIOSAMI
    ChipsetIntel Braswell SoC
    Memory1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    Graphic ChipsetIntel HD Graphics (By CPU)
    Storage1 x SATA, 1 x mSATA, Default to 32GB SSD
    LAN1 x 10/100/1000Mbps Ethernet
    Input / OutputSerial PortsOptional
    USB Ports1 x USB
    VGA PortOptional
    HDMI PortOptional
    Audio CardOptional
    PowerPower InputPoE
    Operation/Power Saving20W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information10.1” Panel PC with PCAP Touch+RFID&QR Reader /ITD101PPCT5XJ1-RFID-QR
    10.1” Panel PC with Resistive Touch+RFID&QR Reader /ITD101PPCT1XJ1-RFID-QR
    10.1” Panel PC with Tempered Glass+RFID&QR Reader /ITD101PPCG1XJ1-RFID-QR

    Image:

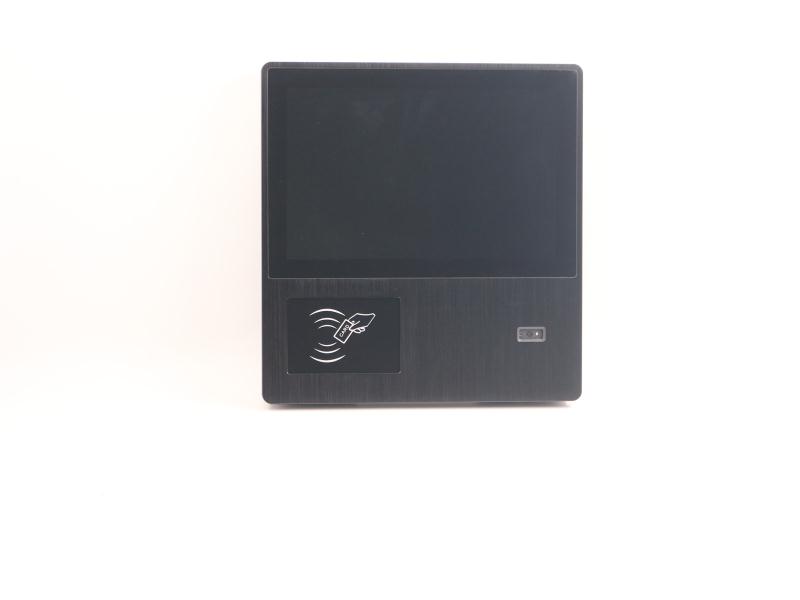

    Quality Industrial HMI 10 Inch PoE Panel Mount Touch Screen Pc for sale
