IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor from wholesalers

    Buy cheap IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor from wholesalers
    • Buy cheap IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor from wholesalers
    • Buy cheap IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor from wholesalers

    IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD18OFT5K1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-5 Business Days
    • Product Details
    • Company Profile

    IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor

    zero bezel true flat 18.5" widescreen industrial touch monitor


    ITD new PCAP multi-touch screen monitor new series is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.


    SPECIFICATIONS


    2. 1 General


    ModelITD18OFT5K1
    IPIP65(for front panel only)
    Outline DimensionsWidth: 461mm Height: 286mm Depth: 43mm
    Weight(N.W/G.W)4.95Kg / 6.9Kg (Approx.)
    Packing Dimension500(W) ×440(H)×140(D)mm
    Speakers8Ω10W
    LCD Type18.5"Active matrix TFT-LCD
    Video InputVGA and DVI-I, HDMI, Audio
    Recommend Resolution1366×768@60Hz,75Hz
    OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: External Brick
    Input (line) Voltage: 100-240 VAC, 50-60 Hz
    Output Voltage/Current: 12V at 4A Max.
    Power Consumption25W
    Mount Interface

    1)VESA 75×75 and 100×100mm

    2)Mounting Brackets optional

    Regular Warranty1 Year for TFT Panel and 2 Years for Others
    Agency ApprovalFCC,CE,RoHS Certified

    2. 2 LCD Specification


    Active Area(mm)409.8(H) x 230.4(V)
    Resolution1366×768(1920×1080 optional)
    Pixel Pitch(mm)0.300×0.300
    Nominal Input Voltage VDD+5V(Typ)
    Viewing angle (L/R/T/B)85°/85°/80°/80°
    Contrast1000:1
    Luminance(cd/m2)250
    Response Time (Rising/Falling)1.5/3.5ms
    Support Color16.7M
    Screen Scanning60Hz
    Backlight MTBF (hr)50000h


    2.3 Touch Screen Specification

    TypeProjected Capacitive Touch Screen
    Resolution4096×4096
    Light Transmission85%±5%
    Touch Life Cycle50 millions times
    Touch Response time5ms
    Touch System InterfaceUSB A type
    Operating Temperature-10~60°C
    Operating System Support

    Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

    Drivers for Windows CE/XP, Android


    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C

    2.5 Environment

    Operating Temp.-10~50°C
    Storage Temp.-10~60°C
    Operating RH:20%~80%
    Storage RH:10%~90%

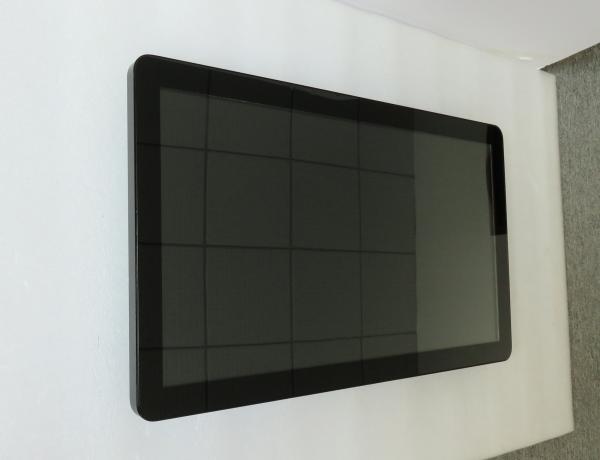

    Product image:
