WIFI Ethernet 25W 250nits 15.6" 1024x768 Industrial Panel PC

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap WIFI Ethernet 25W 250nits 15.6" 1024x768 Industrial Panel PC from wholesalers

    Buy cheap WIFI Ethernet 25W 250nits 15.6" 1024x768 Industrial Panel PC from wholesalers
    • Buy cheap WIFI Ethernet 25W 250nits 15.6" 1024x768 Industrial Panel PC from wholesalers
    • Buy cheap WIFI Ethernet 25W 250nits 15.6" 1024x768 Industrial Panel PC from wholesalers

    WIFI Ethernet 25W 250nits 15.6" 1024x768 Industrial Panel PC

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD156PPCT5K**
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-7 Business Days
    • Product Details
    • Company Profile

    WIFI Ethernet 25W 250nits 15.6" 1024x768 Industrial Panel PC

    industrial panel PC touch screen 15.6" multi-touch screen HMI comfort panel PC


    OPTIONALS

    •Tempered glass

    •VESA brackets, desktop stand, side mounting, floor stand

    •WIFI

    •Camera, card reader built-in


    ITD 15.6” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Celeron™ Quad Core Processor J1900, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panel, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experience. The multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.


    SPECIFICATIONS

    PanelCell Type/Glass SurfaceTFT
    Size15.6”
    Aspect Ratio16:9
    Active Area344.16mm(W)×193.59mm(H)
    Pixel Pitch0.17925(H)×0.17925(V)mm
    Native Resolution1920 x 1080
    Colors262K
    Brightness300nits
    Contrast700:1
    Response Time25ms
    Viewing Angle(Typical)178(H)/178(V)
    Light SourceLED Backlight with 50000Hours’Lifetime
    SystemCPUIntel® Celeron J1900 2.0GHz Processor
    BIOSUEFI
    ChipsetIntel Valley View SSA‐Cunit
    Memory1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage64GB SSD or 500GB HDD
    LAN1 x 10/100/1000Mbps Ethernet
    Input/OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA
    HDMI Port1x HDMI Port
    Audio Card

    with Realtek ALC662

    Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN

    PowerInput VoltageDC 12V
    Operation/Power Saving25W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%(Non Condensing)
    OS SupportWindows 7/ Windows XP/ Windows 8/ Linux/Windows 10
    Mounting MethodVESA
    AccessoriesPower cable, Motherboard CD driver, Screws
    Order Information15.6” Zero-Bezel PCAP Touch Panel PC with J1900/ITD156PPCT5KJ
    15.6” Zero-Bezel Non Touch Panel PC with Intel J1900/ITD156PPCG1KJ
    Order Information15.6” Zero-Bezel PCAP Touch Panel PC with Intel i3/ITD15PPCT5KI3
    15.6” Zero-Bezel PCAP Touch Panel PC with Intel i5/ITD15PPCT5KI5
    15.6” Zero-Bezel PCAP Touch Panel PC with Intel i7/ITD15PPCT5KI7
    15.6” Zero-Bezel Panel PC with Tempered Glass/ITD15PPCG1KI*

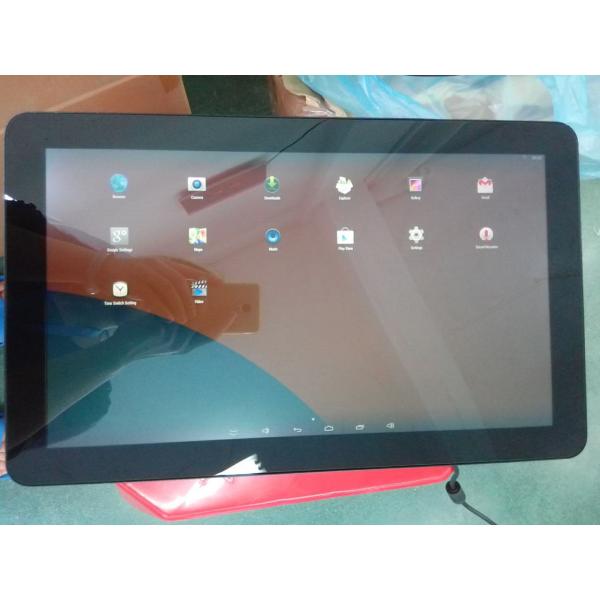

    Product display:
