    250nits 1024x768 8"-21.5" Industrial Panel Mount Monitor

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD08PMT5X31-ITD21PMT5X31
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    250nits 1024x768 8"-21.5" Industrial Panel Mount Monitor

    8" to 21.5" capacitive touch screen monitor industrial panel mount monitor


    ITD rugged industrial multi-touch display panel mounted monitors series is fully-integrated‚ multi capacitive touch screens that combine PCT and PCAP technology in a sleek industrial-grade IP65/ NEMA 4-4x ingress rating TFT-LCD flat panel with flat front surface design and HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays. The ITD multi-touch display can be directly connected to industrial processing machines, control systems, automation systems, pharmaceutical operator interface, and other harsh computing environments


    ModelITD08PMT5X31ITD101PMT5X31ITD10PMT5X31ITD11PMT5X31ITD12PMT5X31
    Size8”10.1”10.4”11.6”12.1”
    Active Area162(W) x 121.5(H)222.52(W) x 125.11(H)211.2(W)*158.4(H)256.32(H)x 144.18(V)246.0(H) x 184.5(V)
    Pixel Pitch0.20250.16290.2640.13350.3075
    Contrast Ratio500:1500:1500:1800:1500:1
    Resolution800 x 600 or 1024 x 7681366 x 768800 x 600 or 1024 x 7681920 x 1080800 x 600 or 1024 x 768
    Brightness250nits300nits300nits350nits300nits
    Viewing Angles70/70/50/7080/80/80/8070/70/60/7089/89/89/8970/70/60/60
    Response Time10ms5ms35ms262K35ms
    Colors262K262K262K25ms262K
    BacklightLEDLEDLEDLEDLED
    ModelITD12PMT5X31WITD13PMT5X31WITD15PMT5X31WITD156PMT5X31ITD17PMT5X31
    Size12.1”(16:10)13.3”15”15.6”17”
    Active Area261.12(H) x 163.2(V)293.76(H) x 165.24V)304.12(H)x 228.09(V)344.232(H)x193.536(V)337.92(H) x 270.33(V)
    Pixel Pitch0.2040.1530.2970.2520.264
    Contrast Ratio700:1800:1700:1500:11000:1
    Resolution1280 x 8001920 x 10801024 x 7681366 x 7681280 x 1024
    Brightness250nits300nits250nits300nits250nits
    Viewing Angles85/85/80/8085/85/85/8580/80/60/7085/85/80/8085/85/80/80
    Response Time4ms14ms35ms6ms5ms
    Colors262K16.7M16.2M16.2M16.7M
    BacklightLEDLEDLEDLEDLED
    ModelITD173PMT5X31ITD19PMT5X31ITD19PMT5X31WITD21PMT5X31ITD22PMT5X31
    Size17.3”19”19”(16:10)21.5”22”
    Active Area381.888(H) x 214.812(V)376.32(H) x 301.06(V)408.32(H) x 255.2(V)476.64(H)x248.25(V)473.76(H)x296.1(V)
    Pixel Pitch0.2940.09450.2480.282
    Contrast Ratio600:11000:11000:11000:11000:1
    Resolution1920 x 10801280 x 10241440 x 9001920 x 10801680 x 1050
    Brightness300nits250nits250nits250nits250nits
    Viewing Angles80/80/60/8085/85/80/8085/85/80/8085/85/80/8085/85/80/80
    Response Time14ms5ms3.6ms5ms5ms
    Colors16.7MM16.7M16.7M16.7M16.7M
    BacklightLEDLEDLEDLEDLED

    SPECIFICATION

    Input Signal ConnectorsVGA, DVI, HDMI
    Power InputExternal Power Supply with Universal/Auto-Sensing
    Power ConsumptionOperation/Power Saving TBA
    Key ControlPower on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left)
    Touch PanelProjected Capacitive Touch Panel with 10 Multi Touch Points
    USB/RS232 port
    7H Surface Hardness, Vandal Proof
    Plug and Play in Windows XP/7/8/10; Linux, Mac, Android with driver
    Operating Temperature-10~60℃ (-20~70℃ optional)
    Storage Temperature-20~70℃
    Operating Humidity10%~90%
    MTBF50000h
    AccessoriesPower Supply, VGA/DVI/HDMI cable, USB Cable, Mounting Brackets(optional)
    Order InformationFlat Bezel Panel Mount PCAP Touch Monitor/ITD**PMT5X31
    Flat Bezel Panel Mount Resistive Touch Monitor /ITD**PMT1X31
    Flat Bezel Panel Mount Monitor with Tempered Glass /ITD**PMG1X31
    Flat Bezel Panel Mount PCAP Touch Monitor 1000nits/ITD**PMT5HBX31
    Flat Bezel Panel Mount Resistive Touch Monitor 1000nits /ITD**PMT1HBX31
    Flat Bezel Panel Mount Monitor with Tempered Glass 1000nits/ITD**PMG1HBX31

    Product Image

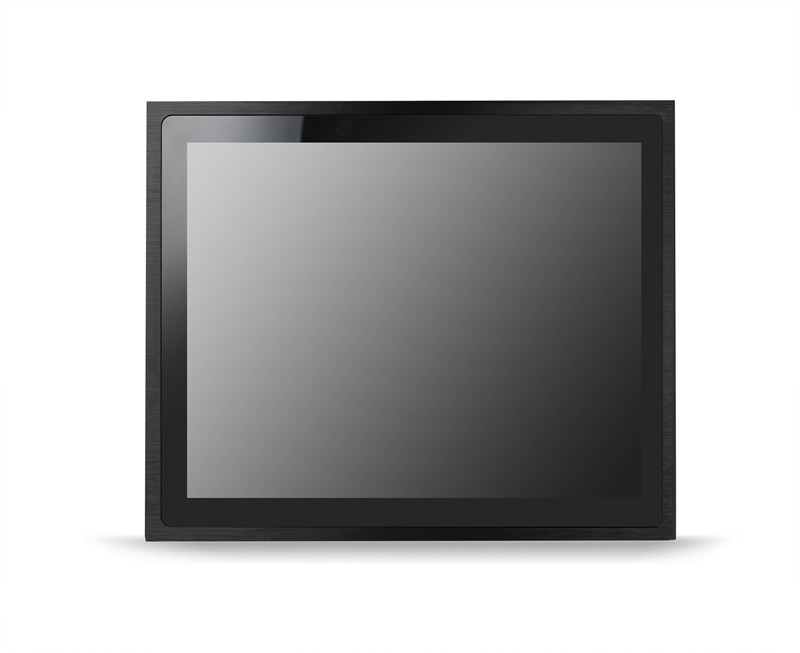

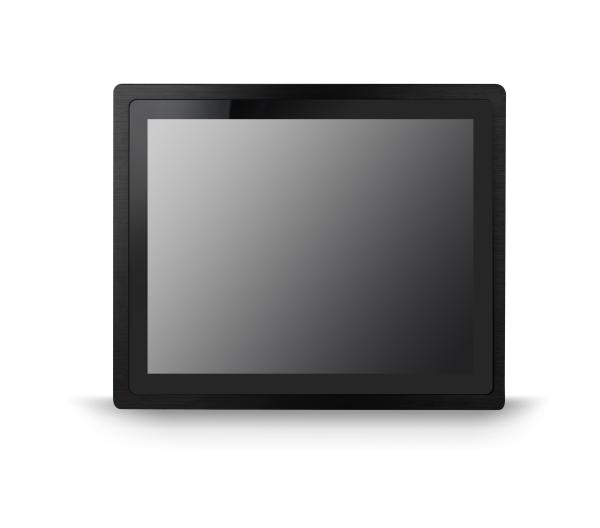

    12.1" panel mount monitor


    12.1" panel mount touch monitor industrial lcd display
