    SCADA 250nits 17.3" Panel Mounted Panel PC 1920x1080 SCADA

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD173PMT5X**
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    SCADA 250nits 17.3" Panel Mounted Panel PC 1920x1080 SCADA

    17.3" multi-touch screen panel mounted panel PC industrial panel PC all in one


    FEATURES of multi touch screen panel PC

    • Easy-to-clean, true flat front surface without bezel

    • Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

    • Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

    • Eliminates dust and debris build-up at the edge and corners of the display

    • Provides improved power efficiency and reduced consumption

    • Responds to a light touch to activate response

    • Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

    • Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

    • CE, FCC, RoHS Compliance


    DISPLAY

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio17.3”/16:9
    Active Area/ Pixel Pitch381.89(H) x 214.81(V)mm/0.1989 × 0.1989mm
    Native Resolution/ Colors1920 x 1080/262K
    Brightness/ Contrast1000cd/㎡/800:1
    Response Time/ Viewing Angle(Typical)30ms/85/85/85/85
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage

    8GB: 16GB/32GB/64GB Optional


    1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

    Line-Out /MIC IN

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

    Line-Out /MIC IN

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving25~50W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information17.3” Flat Bezel Panel PC 1000nits with PCAP Touch RK32880/ITD173PPCT5HBXE2
    17.3” Flat Bezel Panel PC 1000nits with Resistive Touch RK3288/ITD173PPCT1HBXE2
    17.3” Flat Bezel Panel PC 1000nits with Tempered Glass RK3288/ITD173PPCG1HBXE2
    17.3” Flat Bezel Panel PC 1000nits with PCAP Touch J1900/ITD173PPCT5HBXJ2
    17.3” Flat Bezel Panel PC 1000nits with Resistive Touch J1900/ITD173PPCT1HBXJ2
    17.3” Flat Bezel Panel PC 1000nits with Tempered Glass J1900/ITD173PPCG1HBXJ2
    17.3” Flat Bezel Panel PC 1000nits with PCAP Touch i3/ITD173PPCT5HBXI3
    17.3” Flat Bezel Panel PC 1000nits with Resistive Touch i3/ITD173PPCT1HBXI3
    17.3” Flat Bezel Panel PC 1000nits with Tempered Glass i3/ITD173PPCG1HBXI3
    17.3” Flat Bezel Panel PC 1000nits with PCAP Touch i5/ITD173PPCT5HBXI5
    17.3” Flat Bezel Panel PC 1000nits with Resistive Touch i5/ITD173PPCT1HBXI5
    17.3” Flat Bezel Panel PC 1000nits with Tempered Glass i5/ITD173PPCG1HBXI5

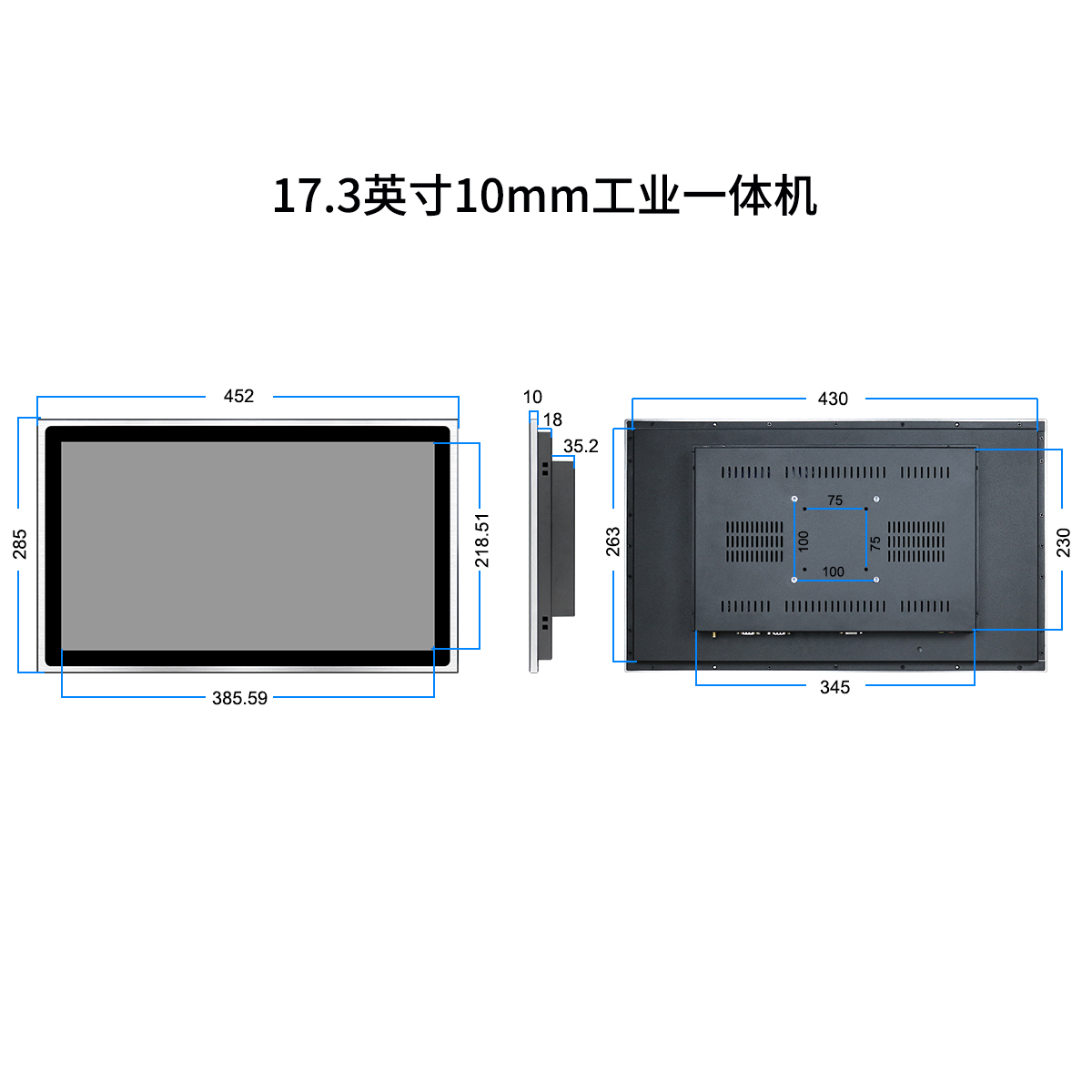

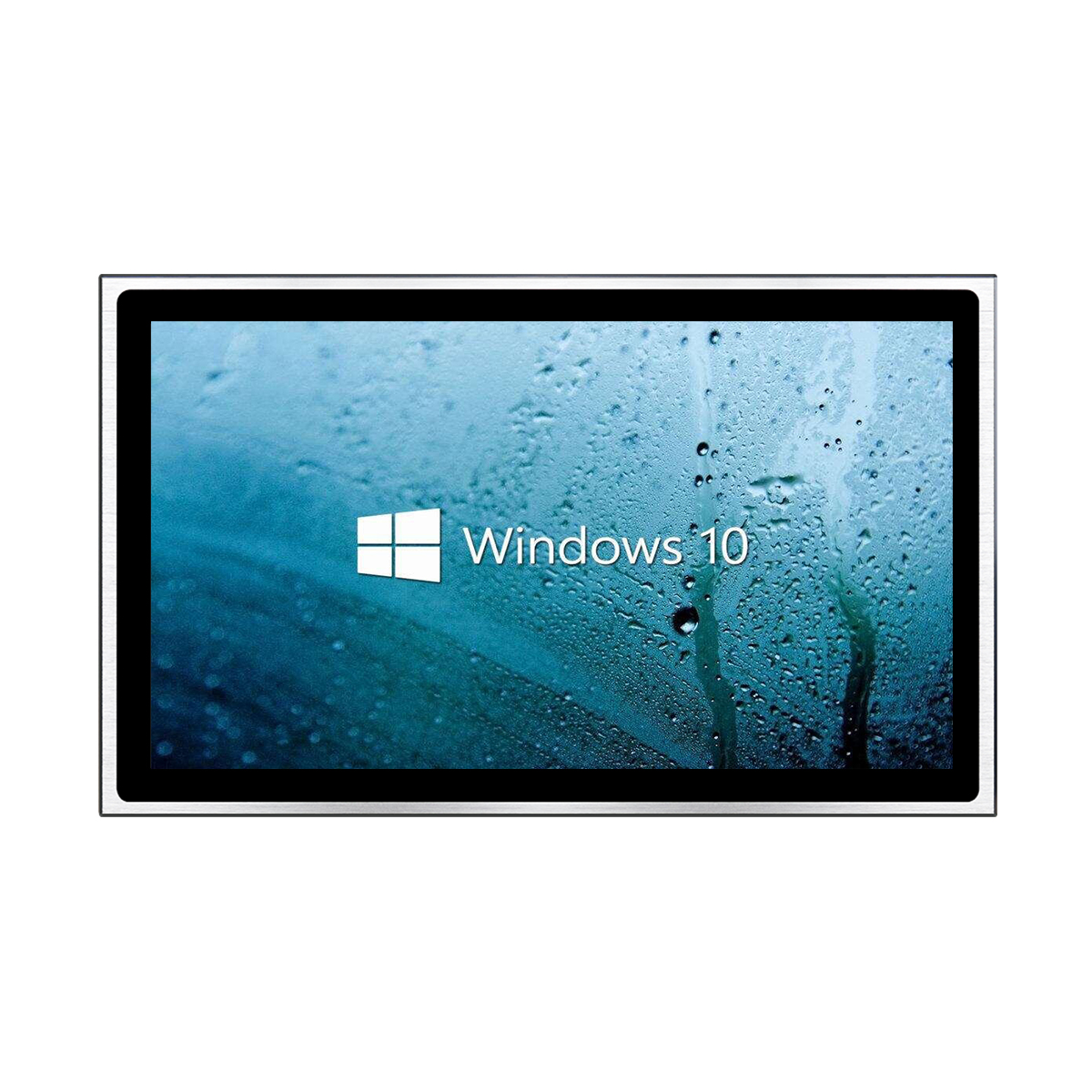

    Product Image of panel mounted panel PC industrial panel PC


    high brightness panel PC



    sunlight readable panel mount PC
