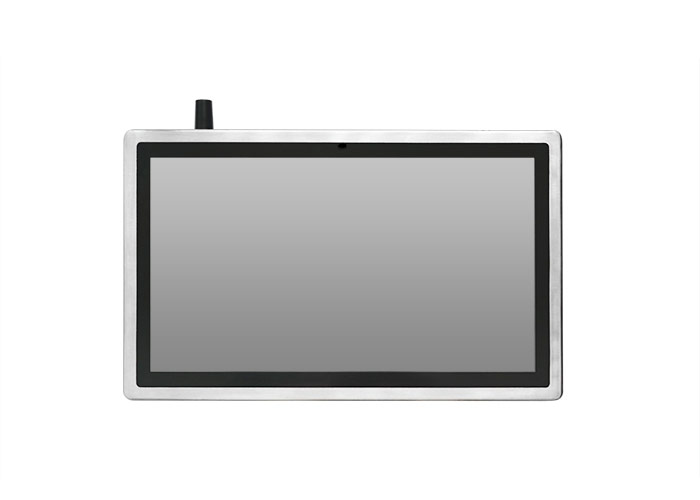

    ip65 panel pc 21.5 inch stainless steel 304 for food industry

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD21PPCT5IPSJ1
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 unit per month
    Delivery Time : 15-20 working days
    Price : TBA
    • Product Details
    • Company Profile

    ip65 panel pc 21.5 inch stainless steel 304 for food industry

    ip65 panel pc 21.5 inch stainless steel 304 for food industry

    The ITD Full IP65/IP66 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chhis waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.




    FEATURES
    •Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
    •Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
    •Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
    •Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
    •Flexible, reliable, and ruggedized for open platform HMI/SCADA
    •Provides improved power efficiency and reduced consumption
    •CE, FCC, RoHS Compliance


    OPTIONALS

    • DC 24V, DC9-36V, AC100-240V• Optical bonding, IP67
    • Resistive, IR, PCAP touch screen, AR/AG tempered glass• WIFI, 3G, 4G, Bluetooth
    • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc.• Stainless Steel, Aluminum Alloy

    DISPLAY

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio21.5”/16:9
    Active Area/ Pixel Pitch476.64(H) x268.11(V)mm/0.24825× 0.24825mm
    Native Resolution/ Colors1920 x 1080/16.7M
    Brightness/ Contrast250cd/㎡/1000:1
    Response Time/ Viewing Angle(Typical)5ms/89/89/89/89
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    Default Waterproof I/O

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving25~45W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    MountingVESA Mount, Panel/Embedded Mount optional
    Order Information21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD21PPCG1IP*E1
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD21PPCT1IP*E1
    21.5” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD21PPCT5IP*E1
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD21PPCG1IP*J1
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD21PPCT1IP*J1
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD21PPCT5IP*J1
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD21PPCG1IP*I3
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD21PPCT1IP*I3
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD21PPCT5IP*I3
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD21PPCG1IP*I5
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD21PPCT1IP*I5
    21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD21PPCT5IP*I5
