    DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD10PPCTxB-xxxx
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO

    industrial hmi touch panel PC embedded with GPIO DC 9-36V input shock vibration proof


    Features

    • Onboard Intel® Celeron® J1900/CoreTM i5-4200U/i7-4500U CPU
    • Onboard DDR3 4GB Memory / Optional SODIMM SKU
    • LCD+HDMI Output, Support Dual view/Simultaneous display
    • Fanless Operation
    • IP65 Front Bezel
    • Wide DC Support 9 ~ 36V
    • Anti-Shock&Vibration

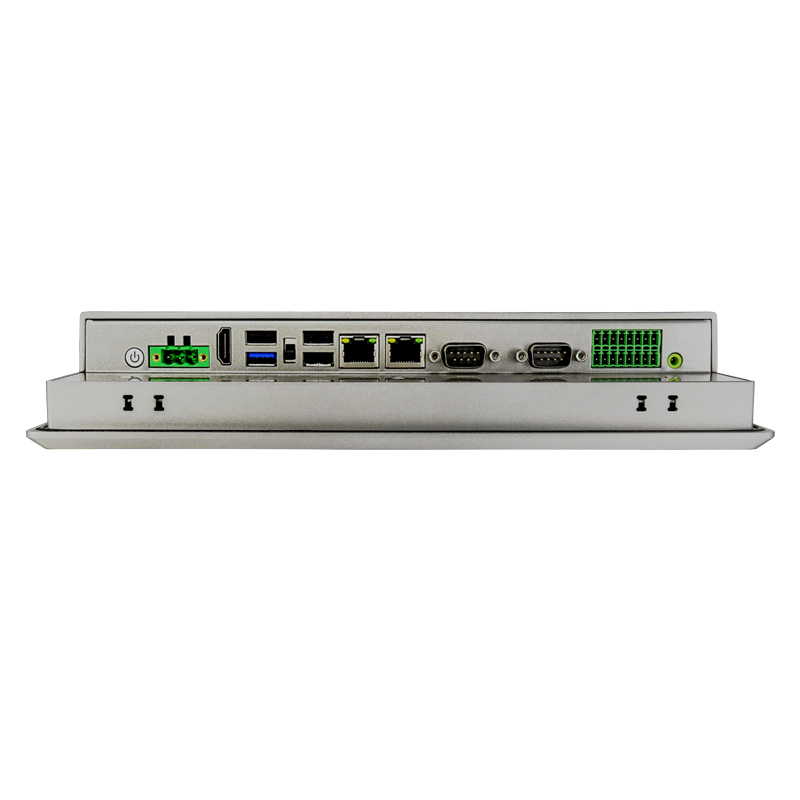

    • Rich I/O with GPIO port


    OPTIONALS

    • DC 24V, DC9-36V, AC100-240V• Optical bonding
    • Resistive touch screen, tempered glass• WIFI, 3G, 4G
    • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, GPS etc.

    DISPLAY

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio10.4”/4:3
    Active Area/ Pixel Pitch211.2(W) x 158.4(H)mm/0.264 × 0.264mm
    Native Resolution/ Colors800 x 600 (1024 x 768 optional)/ 262K/16.2M
    Brightness/ Contrast1000cd/㎡ (1500cd/㎡ optional)/ 700:1
    Response Time/ Viewing Angle(Typical)30ms/70/70/60/70
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage

    8GB: 16GB/32GB/64GB Optional


    1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

    Line-Out /MIC IN

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

    Line-Out /MIC IN

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving15~37W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity

    10%~90%
