    Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD-MNPC- i3/i5/i7B
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

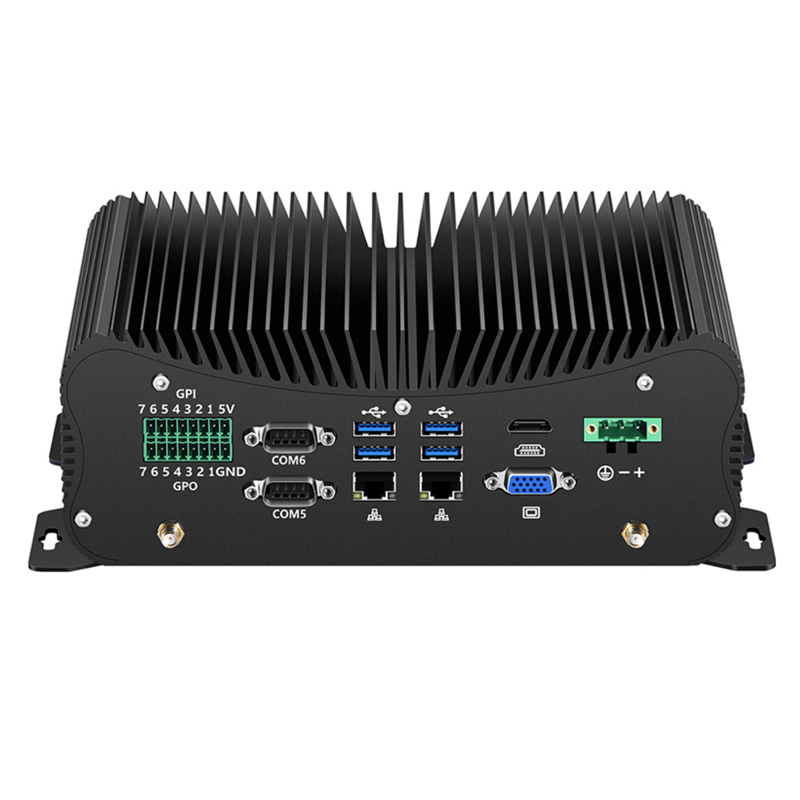

    Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD

    Intel i3 i5 i7 MINI PC box industrial Windows MINI computer


    - Brushed Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.

    - Fanless system without cooling fan, no any noise, work as long as 24 hours.

    - Built-in Wi-Fi or Bluetooth with dual external antennas for option.

    - Dual RJ45 Gigabit LAN and 4 RS232 COM ports fit for industrial field.

    - Can install MSATA SSD+2.5” SATA HDD together.

    - Support VGA + HDMI dual display output synchronously.


    SPECIFICATION

    SystemCPUIntel® Core i3/i5/i7 4th,5th,6th,7th,8th,10th optional
    Memory2 x DDR4 SO-DIMM, up to Max. 16GB
    ChipsetIntel® SoC
    Graphics CardIntel HD Graphics Support 1080P
    Storage1 x MSATA; 1 x HDD/SDD
    LAN2 x GbE RJ45 Intel i211/i210
    OS SupportWindows /7/8/10, Linux,
    Input / OutputSerial Ports2 x DB9 RS232, 4 x DB9 RS232/RS485/RS422
    USB Ports4 x USB3.0, 2 x USB2.0(1 x USB2.0 as Watchdog Interface)
    Video Port1 x HDMI, 1 x VGA
    PS21 x PS2 (Keyboard & Mouse two in one)
    GPIO14 x GPIO (7 IN, 7 OUT)
    Others1 x LPT, 1 x Audio Line OUT, 1 x MIC IN; 1 x DIP Switch, supporting ATX/AT boot mode, 2 x Antenna Port for WIFI/3G/4G, 1 x Phoenix Connector for Remote Switch
    Button1 x Power Button, 1 x Power Input, 1 x Reset Button, 1 x Clear CMOS Button
    Power Port1 x 3pin Phoenix Connector, 9~36V input
    Expansion Slot1 x Mini-PCIe Half Card, Supporting WIFI/BT; 1 x Mini-PCIe Full Card, Supporting WIFI/BT/3G/4G; Expansion IO x 1, supporting LPC, USB, PCIE
    Watchdog Timing1~255s Programmable Setting
    Operating Temperature-20 to 70 C
    Storage Temperature-30~70℃
    Storage Humidity95% @40℃, Non Condensing
