    VESA 15W 300nits Industrial Lcd Touch Monitor DC9-36V For Vehicles

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD156PMT5X1
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 15-20 working days
    Price : TBA
    • Product Details
    • Company Profile

    VESA 15W 300nits Industrial Lcd Touch Monitor DC9-36V For Vehicles

    industrial lcd touch screen monitor FHD HDMI input DC9-36V for vehicles

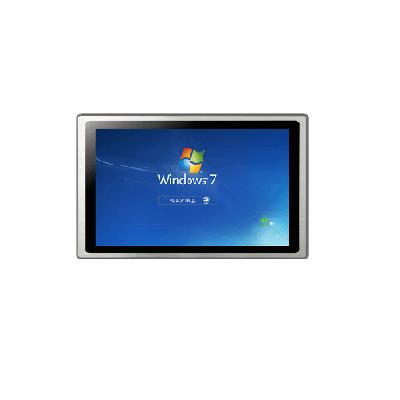

    ITD 15.6” ITD156PMT5X1 is an industrial LCD display (panel mount type), high brightness for sunlight readable application. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.

    BASIC PARAMETERS

    2. 1 General

    Article15.6” Flat Bezel Panel Mount LCD Monitor
    IPIP65(for front panel only)
    Cut-Out Dimensions404×253mm
    Aluminum Front Bezel Thickness3mm (6mm, 10mm optional)
    Weight(N.W/G.W)6.5Kg / 6.8Kg (Approx.)
    LCD Type15.6"Active matrix TFT-LCD
    Video InputVGA and DVI-I, HDMI, Audio
    Recommend Resolution1920×1080@60Hz,75Hz
    OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power InputDC 12V Power Plug; DC 9-36V input optional
    Power Consumption15W
    Mount Interface

    1)VESA 75×75/100×100mm

    2)Panel Mounting via Clamps

    Regular Warranty1 Year for TFT panels; 2 Years for others.
    Agency ApprovalFCC,CE,RoHS Certified
    Order Information15.6” Flat Bezel 3mm Panel Mount Monitor with PCAP Touch/ITD156PMT5X31
    15.6” Flat Bezel 3mm Panel Mount Monitor with Tempered Glass/ITD156PMG1X31
    15.6” Flat Bezel 3mm Panel Mount Monitor with Resistive Touch/ITD156PMT1X31
    15.6” Flat Bezel 10mm Panel Mount Monitor with PCAP Touch/ITD156PMT5X1
    15.6” Flat Bezel 10mm Panel Mount Monitor with Tempered Glass/ITD156PMG1X1
    15.6” Flat Bezel 10mm Panel Mount Monitor with Resistive Touch/ITD156PMT1X1

    2. 2 LCD Specification

    Active Area(mm)344.16(H)x 193.59(V)
    Resolution1920×1080
    Pixel Pitch(mm)0.17925×0.17925
    Nominal Input Voltage VDD+3.3V(Typ)
    Viewing angle (L/R/T/B)85°/85°/85°/85°
    Contrast800:1
    Luminance(cd/m2)300
    Response Time(Rising/Falling)30ms
    Support Color262K
    Screen Scanning60Hz
    Backlight MTBF(hr)50000h

    2.3 Touch Screen Specification

    2.3.1 Projected Capacitive Touch Screen

    TypeProjected Capacitive Touch Screen
    Surface Hardness7H
    Light Transmission85%±5%
    Touch Life Cycle50 million times
    Touch Response time5ms
    Touch System InterfaceUSB A type (USB B type optional)
    Operating System Support

    Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

    Drivers for Windows CE/XP, Mac, Android

    2.3.1 5 Wires Resistive Touch Screen

    Type5 Wires Resistive Touch Screen
    Surface Hardness3H
    Surface TreatmentAnti-Glare
    Light Transmission≥78%
    Finger Touch Life35 million times
    Touch Response time≤15ms
    Touch System InterfaceUSB B type (A type optional)
    Operating System SupportDrivers for Windows CE/XP/7/8/10,Linux, Mac, Android

    2.4 External AC Power Adapter

    Output12V DC/4A
    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C

    2.5 Environment

    Operating Temp.-10~60°C (-20~70°C optional)
    Storage Temp.-20~70°C
    Operating RH:10%~90%
    Storage RH:10%~90%
    Anti-Vibration5Hz-500Hz / 1Grms/3 Axis (optional)
    Anti-Shock15G, 15ms Duration (optional)


    Applications:

    Industrial Automation

    Oil & Gas

    Marine

    Transport and Ticketing

    Banking Automation

    Medical

    IoT&AI
