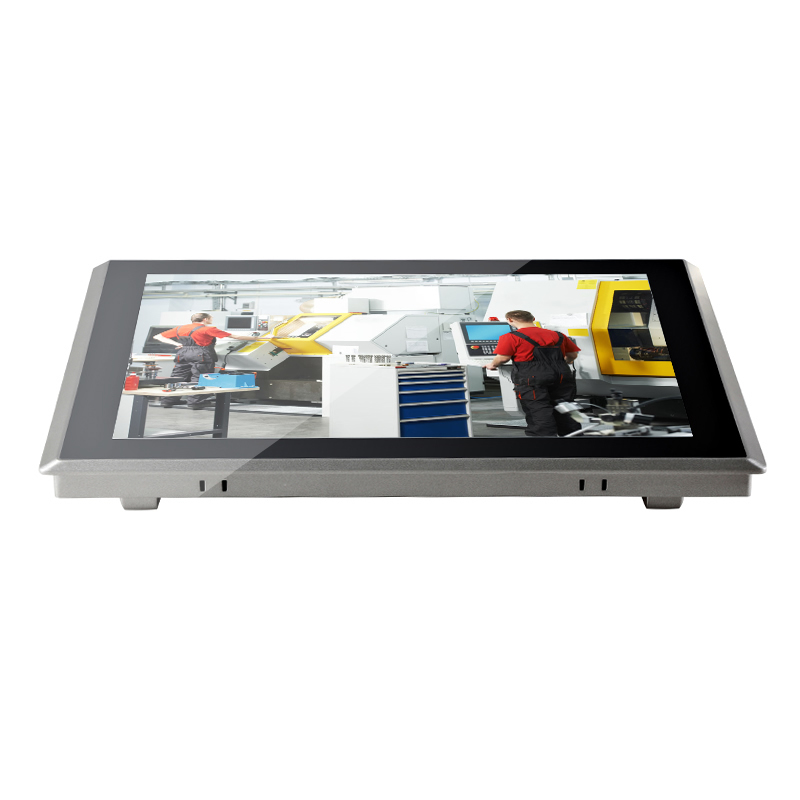

    1024x768 1000nits Pc Panel Touch Screen Linux Ubuntu 18.04 Linux

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCTxB-xxxx
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    1024x768 1000nits Pc Panel Touch Screen Linux Ubuntu 18.04 Linux

    15 panel pc industrial touch screen Linux Ubuntu 18.04


    Features

    • Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU
    • Onboard DDR3 4GB Memory / Optional SODIMM SKU
    • LCD+HDMI Output, Support Dual view/Simultaneous display
    • Fanless Operation
    • IP65 Front Bezel
    • Wide DC Support 9 ~ 36V
    • GPIO Port
    • All Aluminum Housing with Heatsink
    • Edge to edge design, flat surface, easy-to-clean
    • Embedded Mounting and VESA Mounting
    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio15”/4:3
    Active Area/ Pixel Pitch304.13(W) x 228.10(H)mm/0.297 × 0.297mm
    Native Resolution/ Colors1024 x 768/16.2M
    Brightness/ Contrast1000cd/㎡(1500cd/㎡ optional)/700:1
    Response Time/ Viewing Angle(Typical)30ms/80/80/60/80
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage

    8GB: 16GB/32GB/64GB Optional


    1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    I/O

    1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

    1 × TF Card Support 8~128GB

    3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO

    3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 9-36V
    Operation/Power Saving25~55W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
