    1000nits 10.4" Android Industrial Panel Pc XGA Rugged With Trapdoor

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD10PPCT5HBLE2
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

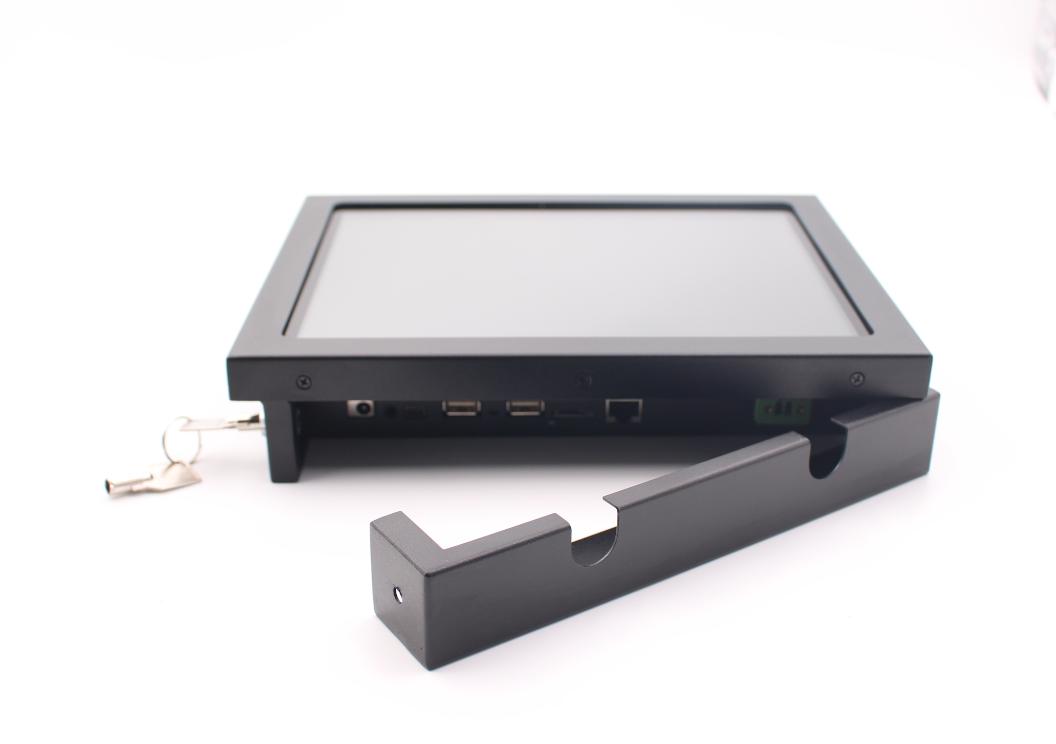

    1000nits 10.4" Android Industrial Panel Pc XGA Rugged With Trapdoor

    android industrial panel pc 1000nits 10.4" XGA rugged with trapdoor

    The ITD industrial chassis panel PC is fully-integrated that combines high-performance ARM based or x86 based PC system with Projected Capacitive Touch (PCT or PCAP)/Resistive Touch/IR Touch/SAW Touch Technology optional in a industrial-grade high bright TFT-LCD flat panel with rugged chassis design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD chassis panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.

    • Kiosks
    • Transportation&Vehicle
    • Digital Signage
    • Medical
    • IoT&AI
    • HMI
    • Outdoor Displays

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio10.4”/4:3
    Active Area/ Pixel Pitch211.2(W) x 158.4(H)mm/0.297 × 0.20625mm
    Native Resolution/ Colors1024 x 768/262K/16.7M
    Brightness/ Contrast1000cd/㎡(1500cd/㎡ optional)/900:1
    Response Time/ Viewing Angle(Typical)16ms/75/75/75/75
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHzIntel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288(RK3399 optional)Intel Bay Trail SoCIntel SoC Chipset
    Memory2GB; 4GB OptionalDual Channel, DDR3 1333/1600MHz Memory, Max.8GB2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

    Line-Out /MIC IN

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

    Line-Out /MIC IN

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving15~40W
    Environment ConsiderationsOperating Temperature-10~60℃ (-20~70℃ optional)
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information10.4” Chassis Panel PC 1000nits with PCAP Touch RK3288/ITD10PPCT5HBLE2
    10.4” Chassis Panel PC 1000nits with Resistive Touch RK3288/ITD10PPCT1HBLE2
    10.4” Chassis Panel PC 1000nits with IR Touch RK3288/ITD10PPCT2HBLE2
    10.4” Chassis Panel PC 1000nits with Tempered Glass RK3288/ITD10PPCG1HBLE2
    10.4” Chassis Panel PC 1000nits with PCAP Touch J1900/ITD10PPCT5HBLJ2
    10.4” Chassis Panel PC 1000nits with Resistive Touch J1900/ITD10PPCT1HBLJ2
    10.4” Chassis Panel PC 1000nits with IR Touch J1900/ITD10PPCT2HBLJ2
    10.4” Chassis Panel PC 1000nits with Tempered Glass J1900/ITD10PPCG1HBLJ2
    10.4” Chassis Panel PC 1000nits with PCAP Touch i3/ITD10PPCT5HBLI3
    10.4” Chassis Panel PC 1000nits with Resistive Touch i3/ITD10PPCT1HBLI3
    10.4” Chassis Panel PC 1000nits with IR Touch i3/ITD10PPCT2HBLI3
    10.4” Chassis Panel PC 1000nits with Tempered Glass i3/ITD10PPCG1HBLI3
    10.4” Chassis Panel PC 1000nits with PCAP Touch i5/ITD10PPCT5HBLI5
    10.4” Chassis Panel PC 1000nits with Resistive Touch i5/ITD10PPCT1HBLI5
    10.4” Chassis Panel PC 1000nits with IR Touch i5/ITD10PPCT2HBLI5
    10.4” Chassis Panel PC 1000nits with Tempered Glass i5/ITD10PPCG1HBLI5
    10.4” Chassis Panel PC 1000nits with PCAP Touch i7/ITD10PPCT5HBLI5
    10.4” Chassis Panel PC 1000nits with Resistive Touch i7/ITD10PPCT1HBLI5
    10.4” Chassis Panel PC 1000nits with IR Touch i7/ITD10PPCT2HBLI5
    10.4” Chassis Panel PC 1000nits with Tempered Glass i7/ITD10PPCG1HBLI5
