    12.1 Inch XGA 1500nits Android Touch Screen Pc Outdoor Full IP67 40W

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD12PPCT5IPSxx
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 15-20 working days
    Price : TBA
    • Product Details
    • Company Profile

    12.1 Inch XGA 1500nits Android Touch Screen Pc Outdoor Full IP67 40W

    12.1 inch XGA 1500nits outdoor full IP67 Android all in 1 pc touch screen

    Options:


    • DC 24V, DC9-36V, AC100-240V• Optical bonding, IP67
    • Resistive, IR, PCAP touch screen, AR/AG tempered glass• WIFI, 3G, 4G, Bluetooth
    • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc.• Stainless Steel, Aluminum Alloy



    Specifications

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio12.1”/4:3
    Active Area/ Pixel Pitch246.0(W) x 184.5(H)mm/0.3075 × 0.3075mm
    Native Resolution/ Colors800 x 600 (1024 x 768 optional)/ 262K/16.2M
    Brightness/ Contrast300cd/㎡/700:1
    Response Time/ Viewing Angle(Typical)30ms/80/80/60/80
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    Default Waterproof I/O

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving20-40W
    Environment ConsiderationsOperating Temperature-10~60℃(-20~70℃ optional)
    Storage Temperature-20~70℃
    MountingVESA Mount, Panel/Embedded Mount optional
    Order Information12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD12PPCG1IP*E2
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD12PPCT1IP*E2
    12.1” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD12PPCT5IP*E2
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD12PPCG1IP*J2
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD12PPCT1IP*J2
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD12PPCT5IP*J2
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD12PPCG1IP*I3
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD12PPCT1IP*I3
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD12PPCT5IP*I3
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD12PPCG1IP*I5
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD12PPCT1IP*I5
    12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD12PPCT5IP*I5

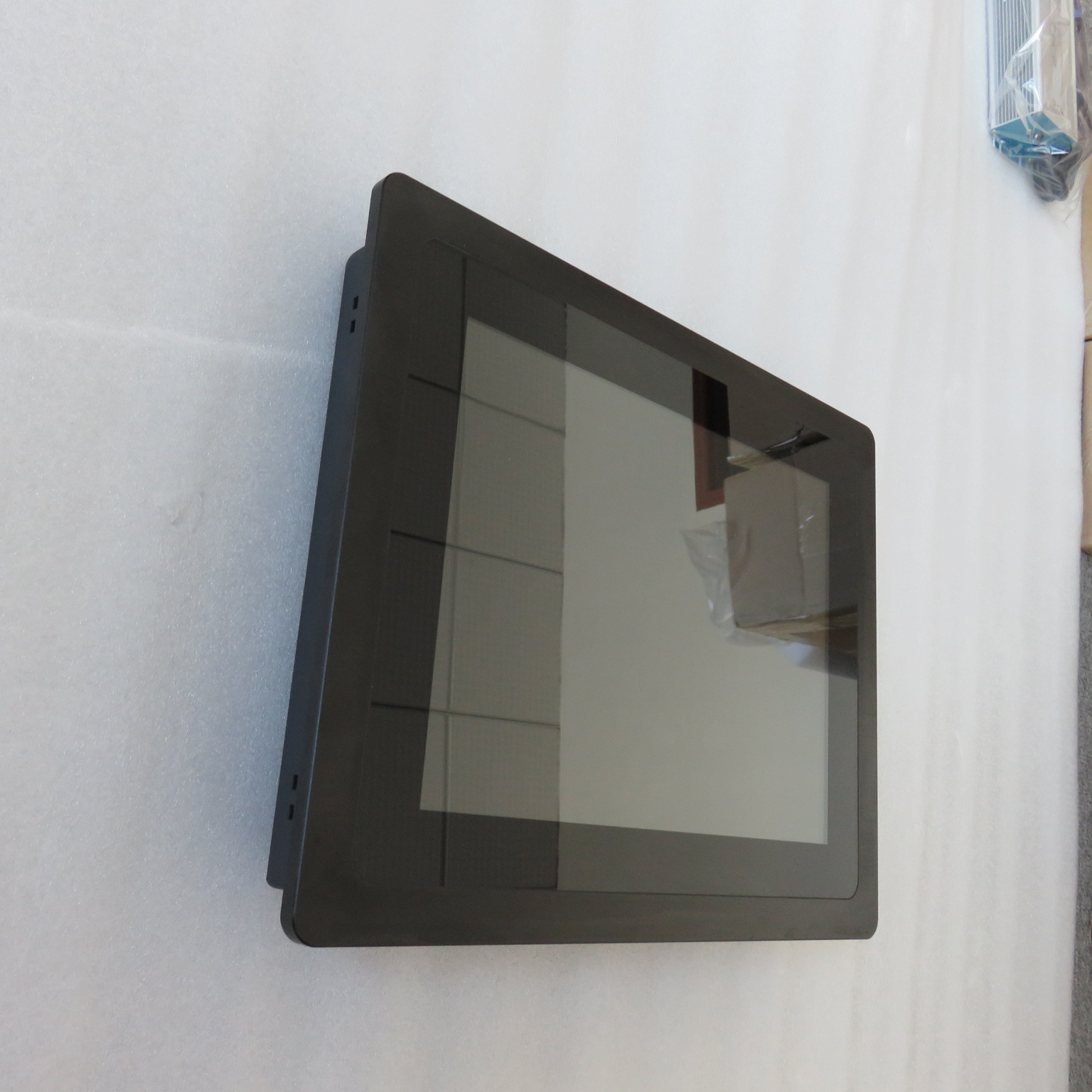

    Product Display




    Quality 12.1 Inch XGA 1500nits Android Touch Screen Pc Outdoor Full IP67 40W for sale
