    Rugged Waterproof ARM Based Box Computer industrial computing MINI PC

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD-MNPC--IPAR-3568
    Certification : CE/ROHS/FCC
    Price : TBA
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 units per month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Rugged Waterproof ARM Based Box Computer industrial computing MINI PC

    Rugged Waterproof ARM Based Box Computer industrial computing MINI PC

    The ITD rugged waterproof ARM based box computer is designed to withstand harsh environmental conditions such as exposure to water, dust, and extreme temperatures. It is rugged and reliable computing solution that can be used in a wide range of applications, including industrial automation, outdoor surveillance, and marine environments. IP65/IP66/IP67 rating indicates that the box PC is completely protected against dust and can withstand immersion in water up to a certain depth for a specified amount of time. Rugged IP65/IP66/IP67 waterproof box computer is a robust and durable computing solution that is designed to withstand harsh environments and extreme conditions


    FEATURES


    •Robust aluminum alloy enclosure, sealed I/O from particles, water, and corrosive agents

    •Full IP65/66/IP67 and sealed with anti-corrosive rubber to providing 360 degree protection

    •Rugged aluminum alloy enclosure with high EMC and IP65/IP66/67 NEMA4/4X protection

    •High performance ARM based computing capabilities with low power consumption

    •Fanless design, anti-Shock and anti-vibration

    •CE, FCC, RoHS Compliance


    Specifications:


    SystemCPUARM Quad Core RK3568, Cortex-A55
    GPUMali-G52-2EE High Performance
    ChipsetRockchip
    SDRAMDefault to DDR4 4GB, Max. 8GB
    ROMDefault to eMMC 32GB, Max. 128GB
    Multi Media(Video Decoding)

    4K 60fps H.265/H.264/VP9; 1080P 100fps H.265/H.264; 8M ISP, HDR

    Supported

    Operating SystemRecommended Android 11, Linux Buildroot/Debian 10/Ubuntu-20.04 and OpenHarmony 3.2 optional
    CommunicationBluetoothBuilt-in High Performance Serial Interface Bluetooth Module (optional) with Support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.0
    WiFi2.4GHz&5GHz, IEEE 802.11 b/g/n/ac (Built-in High-Performance SDIO Interface WiFi6 Module)
    GNSS for GPSOptional
    4G/5G/5G Phone NetworkOptional
    Default Waterproof I/OSerial Ports1 × COM(RS232/RS422/RS485); CAN Bus optional
    USB Ports2 × USB 2.0
    LAN1 × RJ45
    Video Output1 × HDMI Output
    GPIO4 × IN, 4 × OUT
    SIM Card1 × SIM Card Slot
    MIC/Speakers2 × 8Ω2W Speakers Built-in, 1× MIC IN (Headphone Port optional)
    PowerInput VoltageDC 9~36V(Waterproof); DC12V input optional
    Operation/Power Saving15W
    StructureHousing MaterialAluminum Alloy, Full CNC Treated, Anodizing and Anti-scratch Treatment
    ColorBlack or Silver
    Mounting MethodSide Mounting Brackets
    Cooling SystemDie-Casing Aluminum Chassis with Passive Cooling
    Environment ConsiderationsOperating Temperature-20~70℃
    Storage Temperature-40~70℃
    Relative Humidity10%~90%(Non-Condensation)
    Convenient FeaturesPlug and Play (Power on and Boot Automatically); Power Switch optional
    Vibration50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
    Shock10 G/Peak (11 ms)
    AccessoriesWaterproof Cables(HDMI/USB/COM/Power)

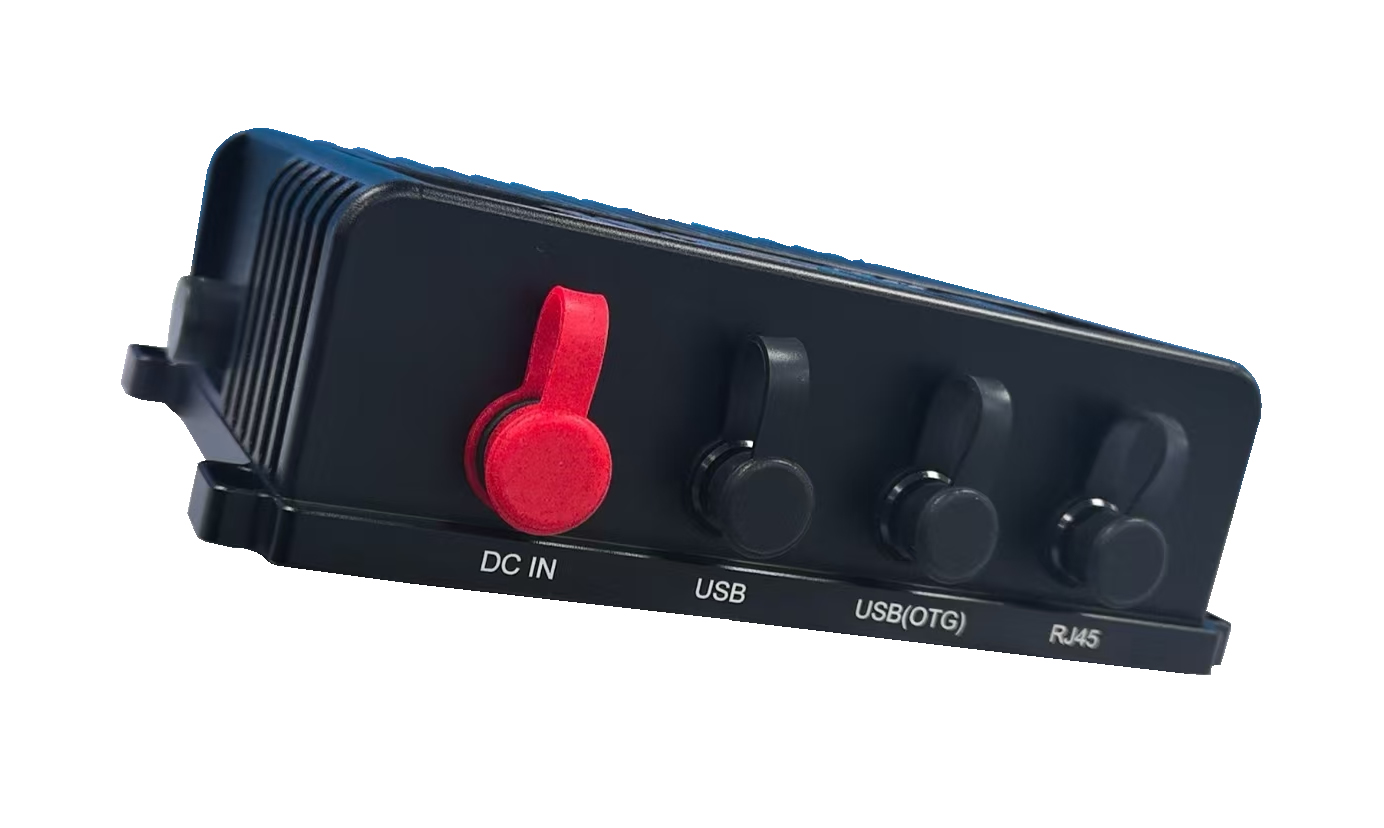

    Product image:













    Factory:
