    15.6" PCAP Touch panel PC integrated Android Windows for pos terminal store outlet

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD156OFT5K1-HL
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    15.6" PCAP Touch panel PC integrated Android Windows for pos terminal store outlet

    15.6" PCAP Touch panel PC integrated Android Windows for pos terminal store outlet


    ITD’s Zero-Bezel LED-Framed PCAP Touch Panel PC is a sleek and durable industrial computing solution designed for seamless integration across various applications. Featuring a true flat, zero-bezel design, it enhances usability while offering multi-touch capacitive touch technology for a smooth and responsive user experience. This high-performance touch panel PC is available with optional ARM-based or x86-based Intel processors, catering to different computing requirements, from energy-efficient edge computing to high-performance industrial automation. Its LED-framed design not only adds a modern aesthetic but also improves visibility in low-light environments. Built for industrial environments, it boasts rugged construction, IP-rated front panel protection, and fanless cooling, ensuring reliable performance in harsh conditions. Whether deployed in factory automation, kiosks, medical devices, or retail, ITD’s Zero-Bezel PCAP Touch Panel PC delivers the perfect combination of durability, efficiency, and cutting-edge touch technology.


    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio15.6”/16:9
    Active Area/ Pixel Pitch344.16(H) ×193.59(V)mm/0.17925 × 0.17925mm
    Native Resolution/ Colors1920×1080/262K
    Brightness/ Contrast300cd/㎡/800:1
    Response Time/ Viewing Angle(Typical)30ms/85/85/85/85
    Light SourceLED Backlight with 30000Hours’Lifetime

    SYSTEM

    ItemARM SolutionX86 Solution
    CPUARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional)Intel® N100
    ChipsetRockchipIntel SoC
    Memory2GB; 4GB/8GB OptionalDDR4 SODIMM×1, Max.16GB
    Storage8GB; 16GB/32GB/64GB/128G Optional1×mSATA, 1×SATA; Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel UHD Graphics (By CPU)
    I/O

    1 × HDMI Output; 2 × USB; 1 ×Type C; 1 × COM,

    1 × TF Card Slot; 1 × Audio IN/OUT

    1 × DC Jack

    1 × HDMI Output; 3 × USB 3.0; 1 × Type C

    1 × Audio IN/OUT

    1 × Power Switch, 1 × DC Jack

    LAN1×10/100/1000Mbps Ethernet1× 10/100/1000Mbps Ethernet
    OSAndroid 7.1/8/10/11/12, etcWindows 10/11/Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving15~25W
    Environment ConsiderationsOperating Temperature-10~50℃
    Storage Temperature-20~60℃
    Relative Operating Humidity10%~80%(Non-Condensing)
    Relative Storage Humidity10%~85%(Non-Condensing)
    Order Information15.6” Zero Bezel Panel PC with PCAP Touch Android RK3288/ITD156PPCT5KE1-HL
    15.6” Zero Bezel Panel PC with Tempered Glass No Touch Android RK3288/ITD156PPCG1KE1-HL
    15.6” Zero Bezel Panel PC with PCAP Touch Android RK3399/ITD156PPCT5KE2-HL
    15.6” Zero Bezel Panel PC with Tempered Glass No Touch Android RK3399/ITD156PPCG1KE2-HL
    15.6” Zero Bezel Panel PC with PCAP Touch Android RK3568/ITD156PPCT5KE3-HL
    15.6” Zero Bezel Panel PC with Tempered Glass No Touch Android RK3568/ITD156PPCG1KE3-HL
    15.6” Zero Bezel Panel PC with PCAP Touch Android RK3588/ITD156PPCT5KE4-HL
    15.6” Zero Bezel Panel PC with Tempered Glass No Touch Android RK3588/ITD156PPCG1KE4-HL
    15.6” Zero Bezel Panel PC with PCAP Touch Windows N100/ITD156PPCT5KN1-HL
    15.6” Zero Bezel Panel PC with Tempered Glass No Touch Windows N100/ITD156PPCT1KN1-HL

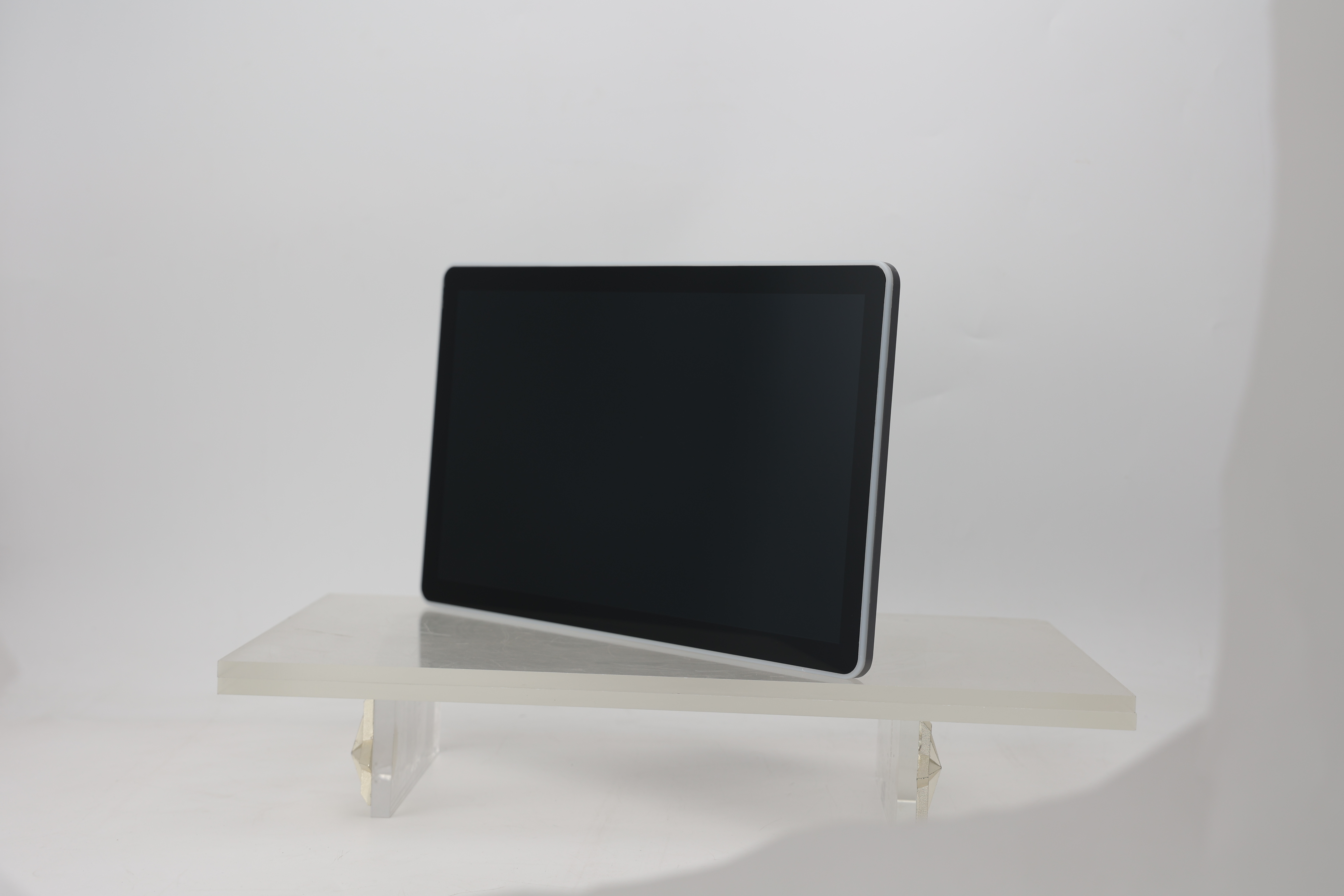

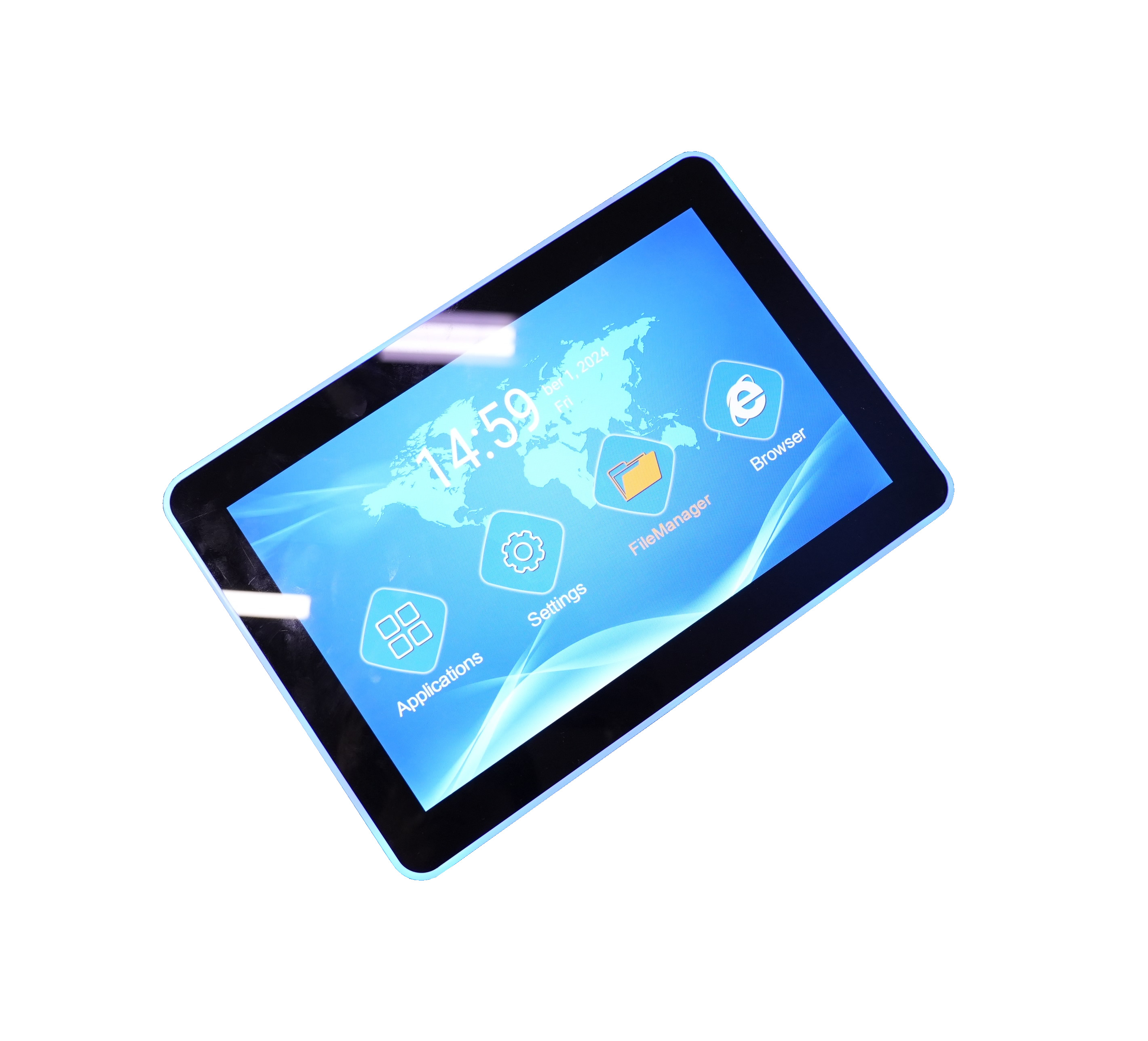

    Product Image





    POS terminal touch screen
