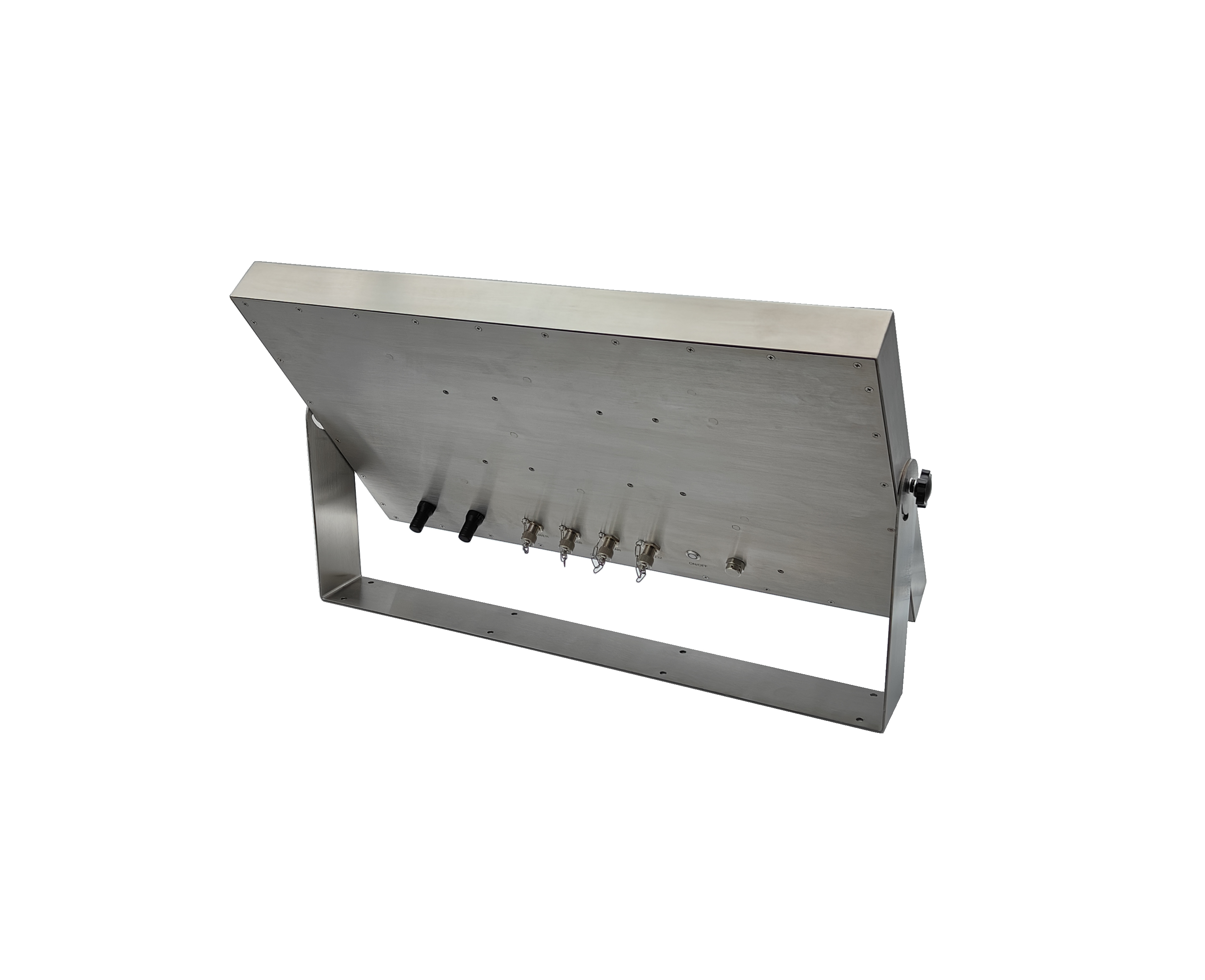

10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel from wholesalers

    Buy cheap 10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel from wholesalers
    • Buy cheap 10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel from wholesalers

    10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD21PPCTxIPS**-69K
    Certification : CE, FCC, RoHS Compliance
    Price : TBP
    Payment Terms : T/T
    • Product Details
    • Company Profile

    10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel

    INTERDUCTION


    The ITD Full IP69K panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical processing, pharmaceuticals, biotechnology process manufacturing and other industrial applications. This waterproof IP69K PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP69k sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration, high-pressure water jets and steam cleaning while meeting required EMI/RFI resistance compliance.


    FEATURES

    •Robust stainless steel(304) enclosure, sealed M12 metal I/Os from particles, water, and corrosive agents

    •IP69K fully sealed with anti-corrosive rubber to providing 360 degree protection

    •Rugged stainless steel enclosure design with high EMC, fanless design and flat surface with easy-to-clean

    •ARM based board built-in or Windows-based PC integrated

    •Flexible, reliable, and ruggedized for open platform HMI/SCADA

    •Provides improved power efficiency and reduced consumption

    •CE, FCC, RoHS Compliance


    OPTIONALS


    • DC 24V, DC9-36V, AC100-240V input

    • High Brightness, Auto-Dimming

    • Resistive Touch, AR/AG/AF Tempered Glass, Optical Bonding

    • WIFI, 4G/5G, Bluetooth, GPS, Speakers

    • VESA Mount, Yoke Mount

    • Stainless Steel 316L

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio10.1” 16:10
    Active Area/ Pixel Pitch216.96(W) × 135.6(H)/0.1695 × 0.1695mm
    Native Resolution/ Colors1280 × 800 /16.7M
    Brightness/ Contrast350cd/㎡(500~1000cd/㎡optional)/800:1
    Response Time/ Viewing Angle(Typical)25ms/85/85/85/85
    Light SourceLED Backlight with 50000Hours’Lifetime
    ItemARM SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz
    (RK3399/RK3568/RK3588 optional)
    Intel® Celeron J1900//J4125/J6412 2.0GHzIntel® Core i3/i5/i7
    ChipsetRockchipIntel Bay Trail SoCIntel SoC Chipset
    Memory2GB; 4GB OptionalDual Channel, DDR3 1333/1600MHz Memory,
    Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)
    2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    DDR4 SODIMM ×2 (8th~11th gen.)
    Storage8GB: 16GB/32GB/64GB Optional1×MSATA, 1×SATA
    1×M.2 (not available for J1900) Default to 64GB SSD
    1×MSATA, 1×SATA
    1×M.2 Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD/UHD Graphics (By CPU)Intel HD/UHD Graphics (By CPU)
    Default
    Waterproof M12
    I/O
    2 × USB, 1 × RJ45, 1 × DC
    More Waterproof I/Os optional
    (1 × TF Card Slot Support 8~128GB)
    2 × USB, 1 × COM, 1 × RJ45, 1 × DC
    More Waterproof I/Os optional
    2 × USB, 1 × COM, 1 × RJ45, 1 × DC
    More Waterproof I/Os optional
    LAN1×10/100/1000Mbps Ethernet1× 10/100/1000Mbps Ethernet( Dual LAN optional)1×10/100/1000Mbps Ethernet( Dual LAN optional)
