    15" IP69K waterproof stainless steel 316L yoke mount pcap touch panel PC industrial AIO

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCT*IPS*-IP69K
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T,Western Union,Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    15" IP69K waterproof stainless steel 316L yoke mount pcap touch panel PC industrial AIO

    15" IP69K waterproof stainless steel yoke mount pcap touch panel PC industrial AIO


    The ITD Full IP69K panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical processing, pharmaceuticals, biotechnology process manufacturing and other industrial applications. This waterproof IP69K PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP69k sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration, high-pressure water jets and steam cleaning while meeting required EMI/RFI resistance compliance.



    DISPLAY


    Panel

    Cell Type/Glass Surface

    TFT

    Size/ Aspect Ratio

    15”/4:3

    Active Area/ Pixel Pitch

    304.128(W) × 228.096(H)mm/0.297 × 0.297mm

    Native Resolution/ Colors

    1024×768 / 16.7M

    Brightness/ Contrast

    350cd/(500~1000cd/optional)/800:1

    Response Time/ Viewing Angle(Typical)

    16ms/80/80/80/80

    Light Source

    LED Backlight with 50000Hours’Lifetime


    SYSTEM

    ItemARM SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional)Intel® Celeron J1900/J4125/J6412 2.0GHz

    Intel® Core i3/i5/i7

    (4th~12th Generation optional)

    ChipsetRockchipIntel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB/8GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)

    2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB

    DDR4 SODIMM ×2 (8th~12th gen.)

    Storage

    8GB; 16GB/32GB/64GB/128G Optional


    1×mSATA, 1×SATA

    1×M.2 (not available for J1900) Default to 64GB SSD

    1×mSATA, 1×SATA

    1×M.2 Default to 64GB SSD

    GraphicsSupports max. 4K resolutionIntel HD/UHD Graphics (By CPU)Intel HD/UHD Graphics (By CPU)
    Default Waterproof M12 I/O

    2 × USB, 1 × RJ45, 1 × DC

    More Waterproof I/Os optional

    2 × USB, 1 × COM, 1 × RJ45, 1 × DC

    More Waterproof I/Os optional

    2 × USB, 1 × COM, 1 × RJ45, 1 × DC

    More Waterproof I/Os optional

    LAN1×10/100/1000Mbps Ethernet1× 10/100/1000Mbps Ethernet( Dual LAN optional)1×10/100/1000Mbps Ethernet( Dual LAN optional)
    OS

    Android 7.1/8/10/11/12, etc.

    Linux Ubuntu(optional)

    Windows 7/10, Linux

    Windows 11(available for J4125/J6412)

    Windows 7/10, Linux

    Windows 11(available for 7th gen. or above)

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving20~45W
    Environmental ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%(Non-Condensing)
    Order Information21.5” IP69K Stainless Steel Android Panel PC with Resistive Touch: ITD15PPCT1IPSEx-69K
    21.5” IP69K Stainless Steel Android Panel PC with PCAP Touch: ITD15PPCT5IPSEx-69K
    21.5” IP69K Stainless Steel J1900 Panel PC with Resistive Touch: ITD15PPCT1IPSJ1-69K
    15” IP69K Stainless Steel J1900 Panel PC with PCAP Touch: ITD15PPCT5IPSJ1-69K
    15” IP69K Stainless Steel J4125 Panel PC with Resistive Touch: ITD15PPCT1IPSJ4-69K
    15” IP69K Stainless Steel J4125 Panel PC with PCAP Touch: ITD15PPCT5IPSJ4-69K
    15” IP69K Stainless Steel J6412 Panel PC with Resistive Touch: ITD15PPCT1IPSJ6-69K
    15” IP69K Stainless Steel J6412 Panel PC with PCAP Touch: ITD15PPCT5IPSJ6-69K
    15” IP69K Stainless Steel i3 Panel PC with Resistive Touch: ITD15PPCT1IPSI3-69K
    15” IP69K Stainless Steel i3 Panel PC with PCAP Touch: ITD15PPCT5IPSI3-69K
    15” IP69K Stainless Steel i5 Panel PC with Resistive Touch: ITD15PPCT1IPSI5-69K
    15” IP69K Stainless Steel i5 Panel PC with PCAP Touch: ITD15PPCT5IPSI5-69K
    15” IP69K Stainless Steel i7 Panel PC with Resistive Touch: ITD15PPCT1IPSI7-69K
    15” IP69K Stainless Steel i7 Panel PC with PCAP Touch: ITD15PPCT5IPSI7-69K
    15” IP69K Stainless Steel Panel PC with Tempered Glass No Touch: ITD15PPCG1IPSxx-69K
    15” 1000nits IP69K Stainless Steel Panel PC with Touch: ITD15PPCG1HBIPSxx-69K

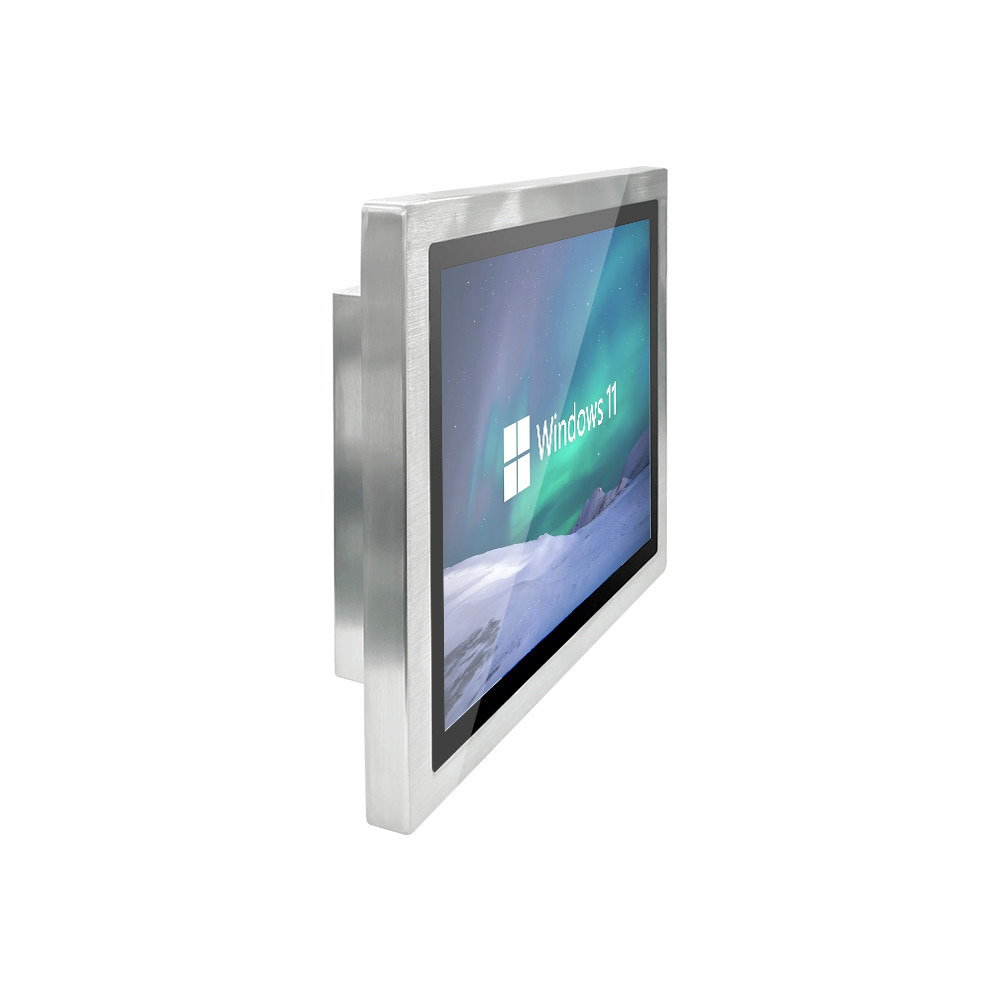

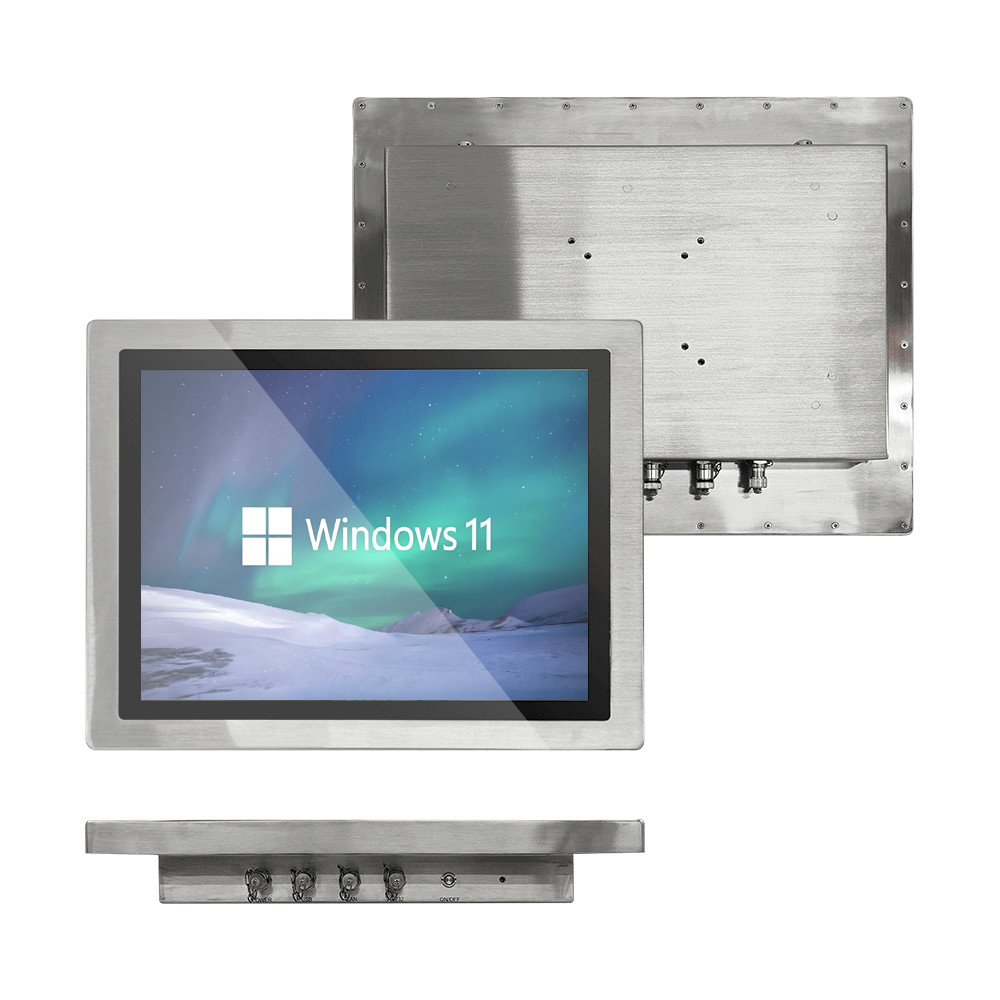

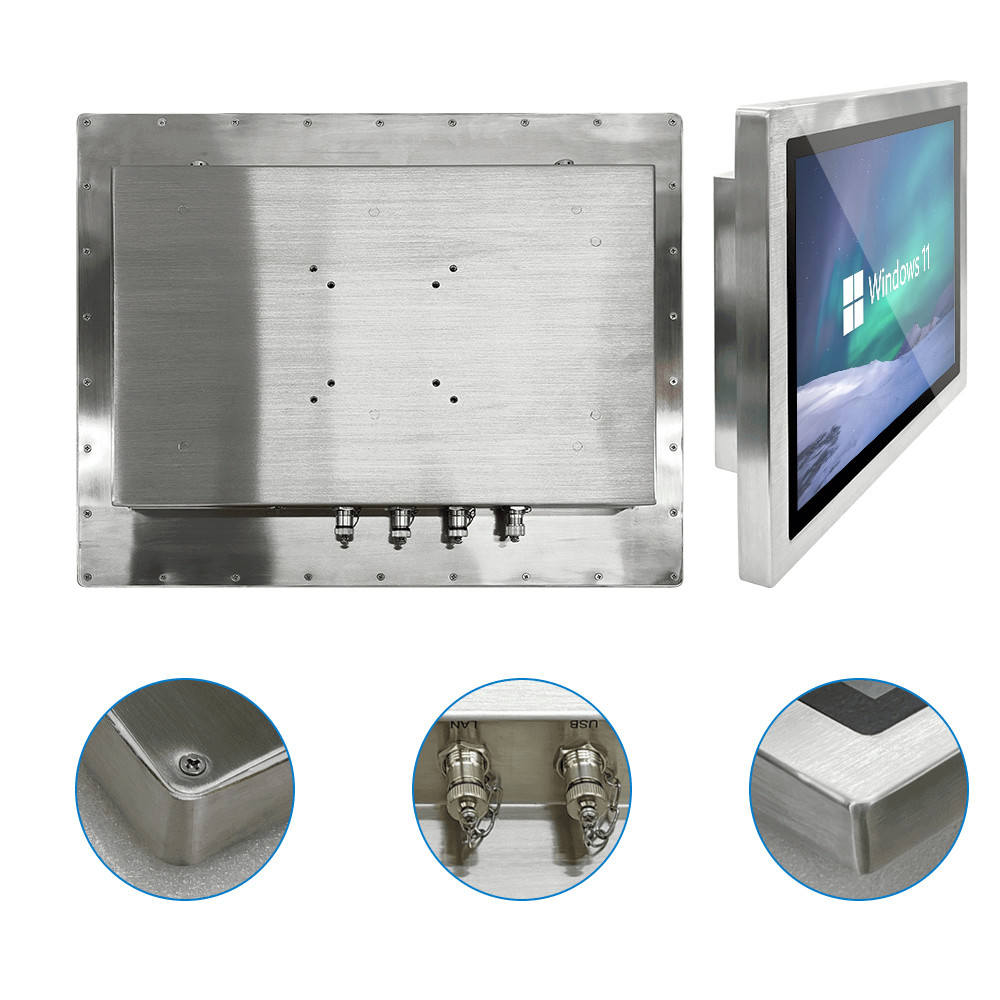

    Product Display
