Brand Name : | ITD |
Model Number : | ITD11CMT5IPS1 |
Certification : | CE,ROHS,FCC |
Payment Terms : | T/T in advance |
Supply Ability : | 1000pcs/month |
Delivery Time : | a month |
industrial touch monitor IP67 rugged lcd aluminum housing resistive pcap touch screen
ITD rugged full IP65/IP66 touch display features industrial-duty fully sealed NEMA 4/IP65 stainless steel chassis and PCAP touch screen fitted for specially use in harsh environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. This makes it ideal for use in food and beverage processing, pharmaceuticals, chemical processing, and other industrial applications.
Panel | Cell Type/Glass Surface | TFT |
Aspect Ratio/Size | 15.6” 16:9 | |
Active Area/Pixel Pitch | 344.16(W) × 193.59(H)/0.17925× 0.17925mm | |
Native Resolution/Colors | 1920 × 1080 /16.2M | |
Brightness/Contrast | 350nits/800:1 | |
Response Time/ Viewing Angle | 13/12ms/85/85/85/85 | |
Light Source | LED Backlight with 50000Hours’Lifetime | |
Input Signal | HDMI (Waterproof Connector) | |
Power Input | DC 12V input (Waterproof Connector) | |
Touch Panel | PCAP Touch Panel Waterproof USB Connector | |
Power Consumption | 18W | |
Operating Temperature | -10~60℃ (-20~70℃ optional) | |
Storage Temperature | -20~70℃ | |
Operating Humidity | 10~90% (Non-Condensing) | |
Order Information | 15.6” IP65/IP66 Stainless Monitor No Touch with Tempered Glass/ITD156CMG1IPS1 | |
15.6” IP65/IP66 Stainless Monitor with Resistive Touch/ITD156CMT1IPS1 | ||
15.6” IP65/IP66 Stainless Monitor with PCAP Touch/ITD156CMT5IPS1 | ||
15.6” IP65/IP66 Alu-Alloy Monitor No Touch with Tempered Glass/ITD156CMG1IPA1 | ||
15.6” IP65/IP66 Alu-Alloy Monitor with Resistive Touch/ITD156CMT1IPA1 | ||
15.6” IP65/IP66 Alu-Alloy Monitor with PCAP Touch/ITD156CMT5IPA1 |

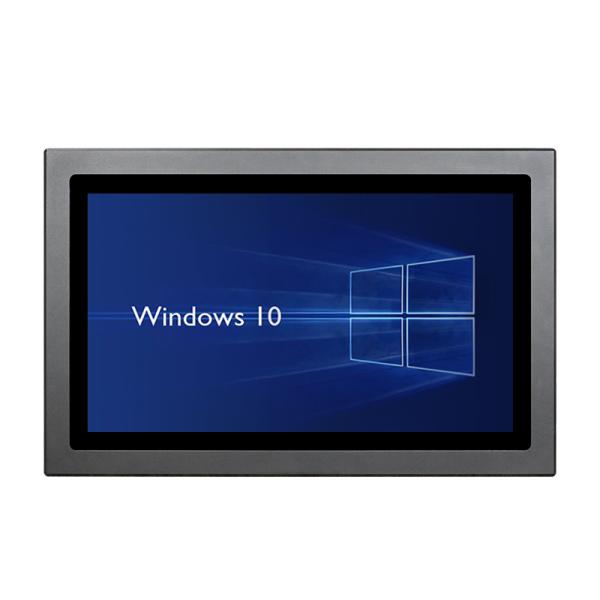

Product picture
