    Customized 10.1'' PCAP Flat Bezel Touch LCD Panel PC with Resistive Touch and RFID Reader

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD101PPCT5XJ1-RFID-QR
    Certification : CE,FCC, RoHS Compliance
    Price : TBA
    Payment Terms : T/T
    Delivery Time : 10-15 Business days
    • Product Details
    • Company Profile

    Customized 10.1'' PCAP Flat Bezel Touch LCD Panel PC with Resistive Touch and RFID Reader

    INTRODUCTION

    The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J3160 1.6GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.


    FEATURES

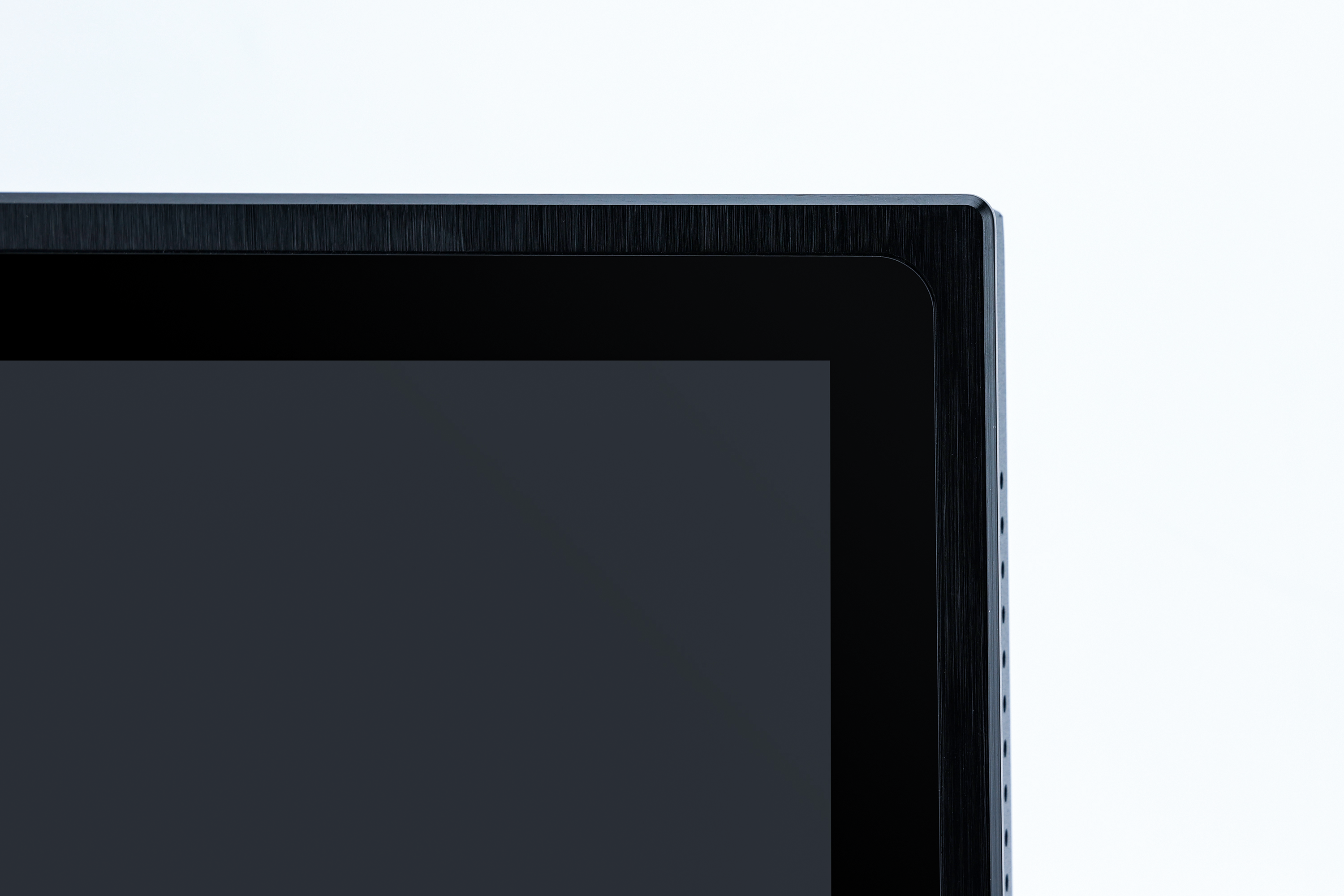

    ▪ Easy-to-clean, true flat front surface without bezel

    ▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

    ▪ Web camera, RFID and thermal printer integrated

    ▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

    ▪ Eliminates dust and debris build-up at the edge and corners of the display

    ▪ Provides improved power efficiency and reduced consumption

    ▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

    ▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

    ▪ CE, FCC, RoHS Compliance


    OPTIONS

    • DC 24V, DC9-36V, AC100-240V

    •High brightness, sunlight readable

    •Resistive touch screen, tempered glass

    •Speakers, NFC, Fingerprint, thermal printer, etc.


    SPECIFICATION

    SystemCPUIntel® Celeron J3160 1.6GHz Processor
    BIOSAMI
    Memory1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    ChipsetIntel Braswell SoC
    Storage1 x SATA, 1 x mSATA, Default to 32GB SSD
    Graphic ChipsetIntel HD Graphics (By CPU)
    LAN1 x 10/100/1000Mbps Ethernet
    PanelCell Type/Glass SurfaceColor TFT LCD
    Aspect Ratio/Size10.1''/16:10
    Active Area/Pixel Pitch216.96(H) x 135.6(V)mm
    Native Resolution/Colors1280 x 800/16.7M
    Response TBrightness/Contrast350cd/㎡ /800:1
    Viewing Angle(Typical)85/85/85/85
    Light SourceLED backlight with 50000hours’lifetime
    Input / OutputSerial PortsOptional
    USB Ports1 X USB
    HDMI PortOptional
    VGA PortOptional
    Audio CardOptional
    PowerInputPoE
    Operation/Power Saving20W
    Operating Temperature-10℃~60℃
    Storage Temperature-20℃~70℃
    Relative Humidity10%~90%
