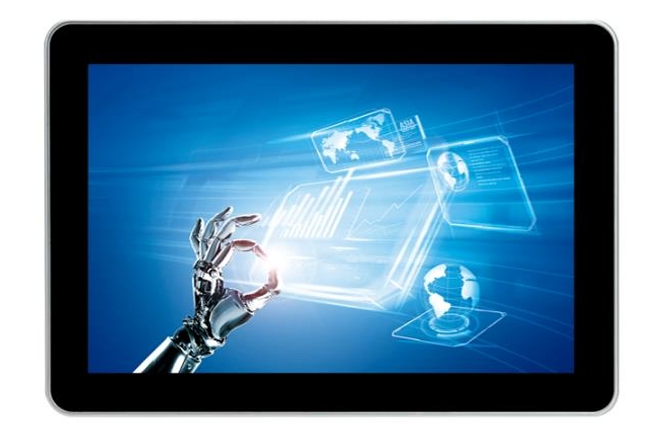

    12.1'' PCAP Zero Bezel Touch LCD Panel PC All In One Fanless with Halo LED light strip

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD101PPCT5KE1-DC
    Certification : CE,FCC, RoHS Compliance
    Price : TBA
    Payment Terms : T/T
    Delivery Time : 10-15 Business days
    • Product Details
    • Company Profile

    12.1'' PCAP Zero Bezel Touch LCD Panel PC All In One Fanless with Halo LED light strip

    INTRODUCTION

    ITD 10.1” multi-touch screen HMI comfort zero-bezel panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Based processor or x86 based Intel CPU, and Projected Capacitive Touch (PCT or PCAP) Technology in industrial-grade LCD flat panels, with sleek & flat front surface and die-casting aluminum chassis. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage and industrial applications.


    FEATURES

    • Easy-to-clean, true flat front surface without bezel eliminating dust and debris build-up at the edge and corners of the display

    • Die-casting aluminum chassis for a seamless design and more efficient heat dissipation

    • 10-point projected capacitive touch technology with fast response, precise, and stable.

    • Halo LED light strip integrated optional adding a more attractive and eye-catching element

    • Provides improved power efficiency and reduced consumption

    • Ruggedized levels of NEMA 4, IP65 ratings for front panel

    • Universal mounting options meeting various installation requirements.

    • CE, FCC, RoHS Compliance


    SPECIFICATION

    ItemARM SolutionX86 Solution 1
    CPUARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional)Intel® N100
    ChipsetRockchipIntel SOC
    Memory2GB; 4GB/8GB OptionalDual Channel, DDR4 3200/ DDR5 4800 Max.18GB
    Storage8GB; 16GB/32GB/64GB/128G Optional1×mSATA, 1×SATA
    GraphicsSupports max. 4K resolutionIntel UHD Graphics (By CPU)
    I/O1 × HDMI Output; 1 × USB 2.0, 1× USB 3.0; 1 × RS232; 1 × RJ45 1 × TF Card Slot; 1 × Audio IN&OUT1×HDMI Output; 3×USB 3.0; 1×Type C; 1×Audio IN&OUT; 1 × RJ45
    LAN1×10/100/1000Mbps Ethernet1× 10/100/1000Mbps Ethernet
    OSAndroid 7.1/8/10/11/12, etc.Windows 10/11, Linux
    PanelCell Type/Glass SurfaceColor TFT LCD
    Aspect Ratio/Size10.1”/16:10
    Active Area/Pixel Pitch216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm
    Native Resolution/Colors1280×800/16.7M
    Response Brightness/Contrast350cd/㎡(500~1000 cd/㎡optional)/800:1
    Viewing Angle(Typical)85/85/85/85
    Light SourceLED backlight with 50000hours’lifetime
    PowerInputDC 12V
    Operation/Power Saving10~20W
    Operating Temperature0~50℃
    Storage Temperature-10~60℃
    Relative Humidity10%~80%(Non-Condensing)
